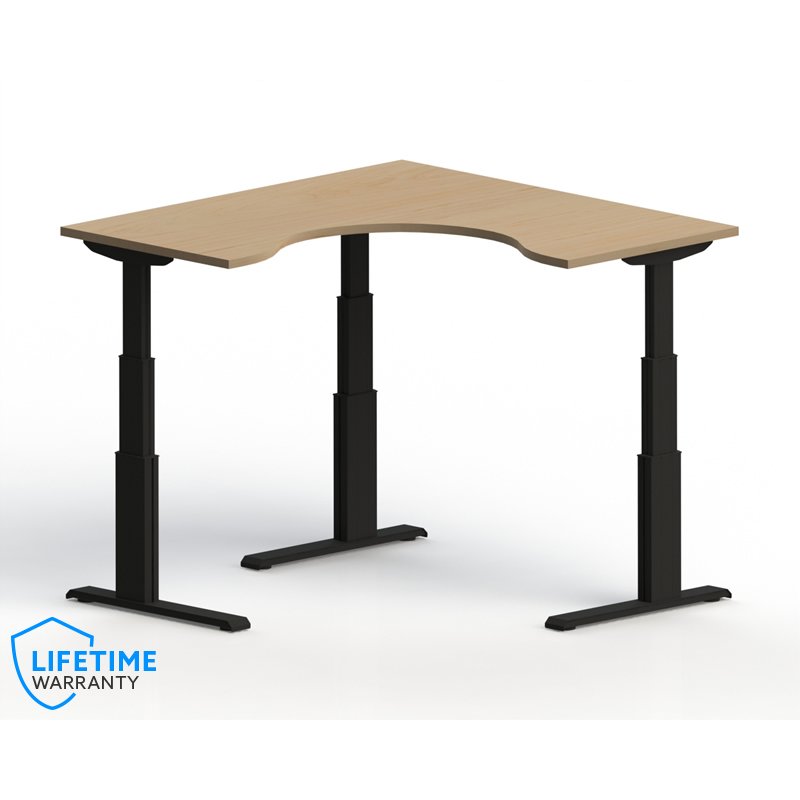

NewHeights Elegante XT Corner Cockpit Adjustable Height Desk w/ Voice Control

Roll Over to Magnify / Click for Expanded View

More images

NewHeights™ Elegante XT Corner Cockpit Adjustable Height Desk - 24" to 51" Adjustment Range - 485 lbs Capacity **Made in the USA**
Click to enlarge
Starting At $2,493.99 + Free Shipping!

Product ID : RA-307272NHPLBT
Manufacturer: RA Products

This product typically ships within 10 business days more details

E-mail to a friend | Add To Wish List

Purchase

?
?
?

Description

The space-saving design of the NewHeights Elegante XT Corner Cockpit Adjustable Height Desk can help free up in-demand office space while offering a completely customizable space to think and work. You can select the work top color, base color, and corner options, and you can choose to add on other features, such as a keyboard tray, monitor arms, wire management, file cabinets, or a pencil drawer. The adjustable height is a great option for individuals with hip or back pain, and the sturdy laminate top and durable aluminum base proves that this is a quality desk built with longevity in mind.

Additional Resources From The Learning Center
What Is The Best Standing Desk For 2020?
How Many Calories Will I Burn Sitting vs Standing?
Top 6 Reasons Why Adjustable Standing Desks Wobble
12 Reasons To Avoid Cheap Standing Desks Under $400
What Is The Best Wire Management For Standing Desks?
Top 5 Problems With DIY Standing Desks

Specs

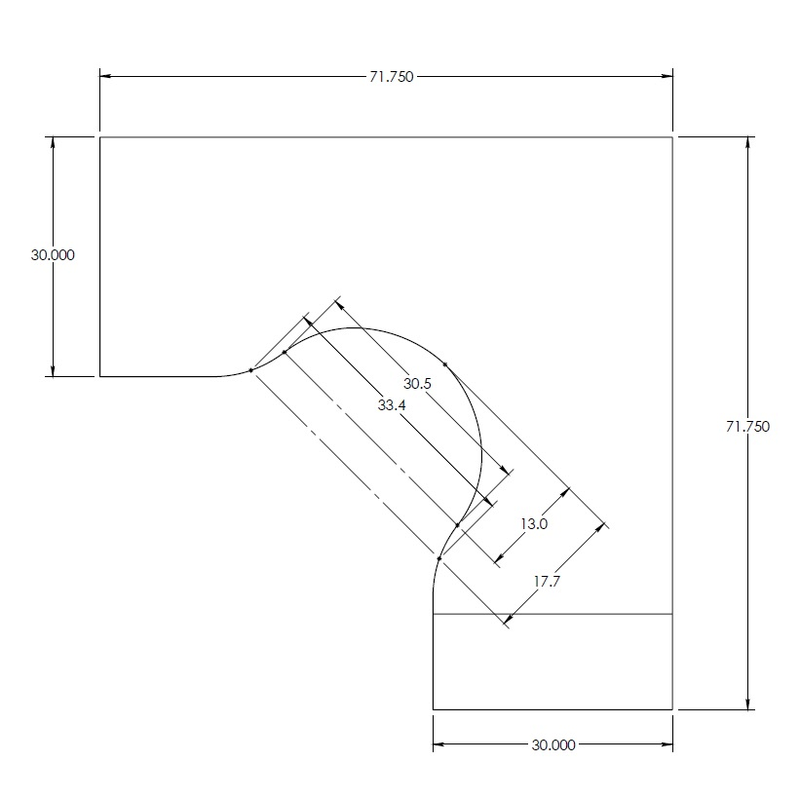

  • 30" x 72" x 72" x 30
  • Standard push button control for easy height adjustment (programmable available)
  • Smooth movements with soft start and stop mechanism
  • Includes a safety stop function if the table hits something going up or down (ISP)
  • Large height adjustment range from 24" to 51"
  • Quick and quiet adjustment speed of 1.5"/second (even when fully loaded @ 485lbs)

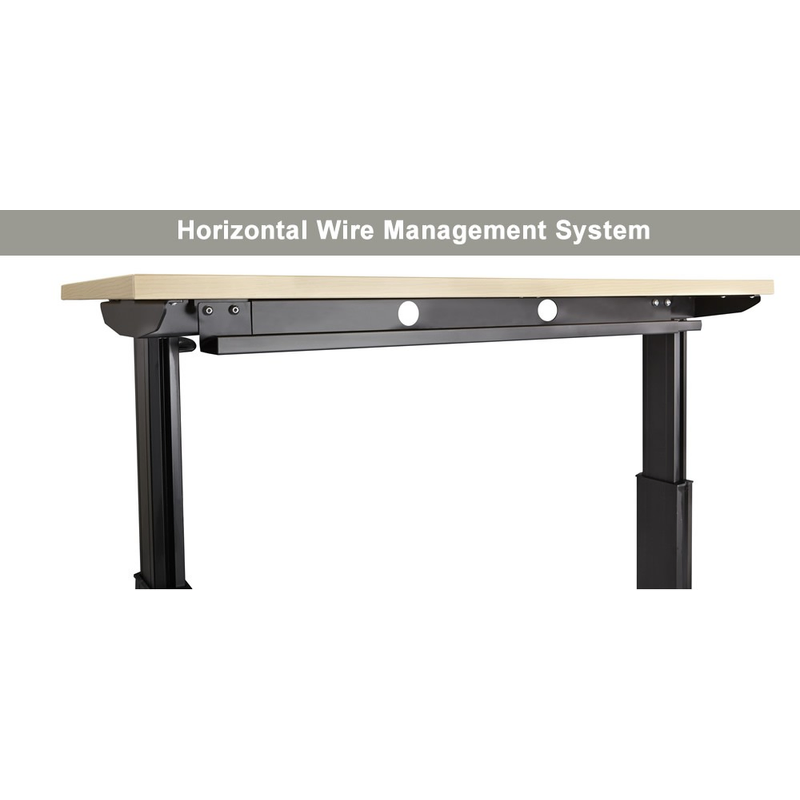

  • Horizontal wire management tray system comes standard (runs between legs with easy access to run wires)
  • Durable 1 1/8" thermally fused laminate worksurface w /matching 3mm edge banding
  • Strong lifting capacity of 485 lbs

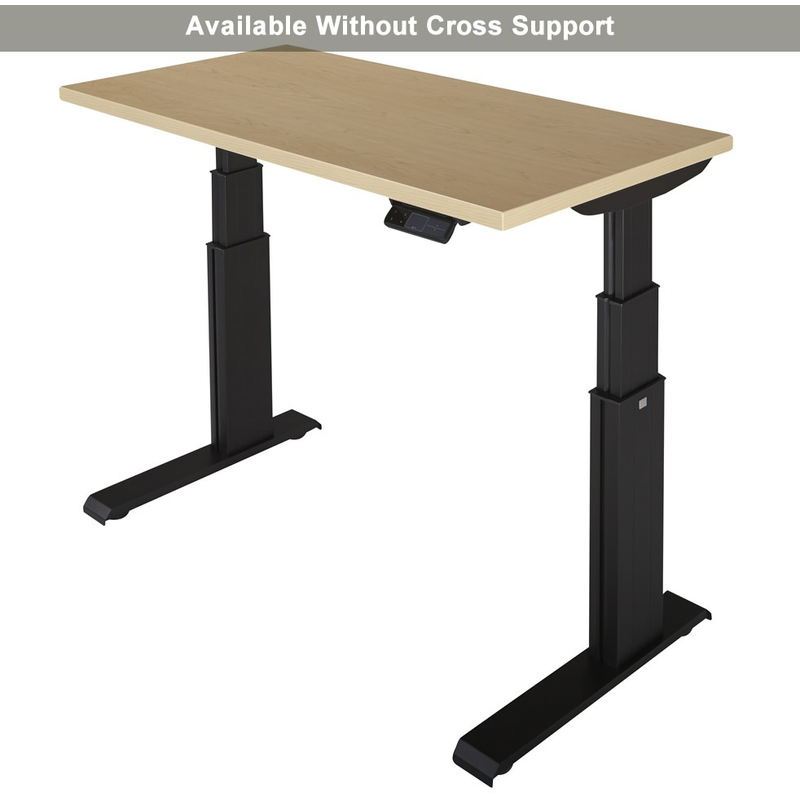

  • Available with or without the cross support (with cross support the NewHeights has zero rocking motion)
  • Manufactured in the United States of America
  • Ready to Assemble - Assembly requires 60-90 minutes
  • NEW EXTENDED WARRANTY: 20 years on the frame & electronics, 5 years on the desktop
  • Standard Warranty: 12 years on the frame & electronics, 5 years on the desktop
  • Please note L Shape Newheights desks are not returnable. Once production has started this cannot be cancelled. If you have a question on colors please order a free color sample.



SPECS


Steel Frames


Stability Starts With a Solid Foundation

Thanks to extruded aluminum the NewHeights™ XT’s legs are extraordinarily strong and unbendable. Through the extrusion process, raw aluminum is heated and then pushed through a tool called a “die”. The result is a perfectly shaped piece of aluminum that becomes stronger as it hardens.  Because the legs are molded rather than solid they are more rigid which prevents both swaying and tipping that other desks with solid legs may experience. Extruded products don’t bend and they also don’t rust which means they are good for the environment since you will not need to replace them due to these factors.



European Engineered Motor & Spindle Drives

The double stroke synchronized telescopic spindle gear system is more efficient than chain drives and provides a smoother and quieter lifting motion. These state-of-the-art systems are designed and manufactured by Ketterer Gears in Germany, in an area known for high-precision mechanical systems. Ketterer got its start more than 180 years ago, when Benedikt Ketterer founded a clock making factory in 1832. Since then the company has always been on the forefront of new ideas, from the first electricity connection in the area, to the factory’s own private rail siding for its material supplies. For the past 25 years, Ketterer has been making height adjustment mechanisms for office and workshop systems, so you can rest assured the XT’s spindle gear system is a leader in dependability and durability.





Precision Spindle Gears and Motor

4EVERedge Technology


Seamless Edges with 4EVERedge Technology

Say good bye to peeling, sharp edges on your desktop. The 4EVERedge™ process produces virtually invisible joints using state of-the-art hot air technology rather than old fashioned glue. The seamless edge banding which results, looks neater, is resistant to dirt, heat and moisture and even offers a higher UV resistance to fading. Plus you won’t have to worry about replacing your whole desk just because your edges are coming undone because they won’t!  But just to give you even more peace of mind, these edges come with a lifetime warranty. You won’t have to worry about getting your shirt caught in the edge of your desk again with 4EVERedge! ™



Industry Leading Electronics from LOGICDATA

Since 1994 LOGICDATA has been a leading supplier in the field of innovative motor controls and operating elements for electronically height-adjustable furniture. LOGICDATA is an expert in the development of intelligent electronics, embedded software, and mechatronics (a combination of mechanical engineering, electrical engineering, telecommunications engineering, control engineering and computer engineering). LOGICDATA has been ISO 9001 certified since 2005. ISO 9001 is an international standard that outlines the requirements and minimum standards a company must maintain in their quality system.



LOGICDATA



OPTIONS


Corner Options:

Square Corners
Square Corners

Round Corners

Round Corners



Cross Support Option:

Cross Support


Aluminum Cross Support for Rock Solid Stability

Also made of extruded aluminum, the XT’s cross support ensures this standing desk is the most stable on the market. By adding the cross support option your desk will have absolutely zero movement, even at heights of 51 inches! This ultimate steadiness is due to a frame underneath the top, connecting both legs, and the cross support spanning across the bottom half of the frame.™


Button Options:

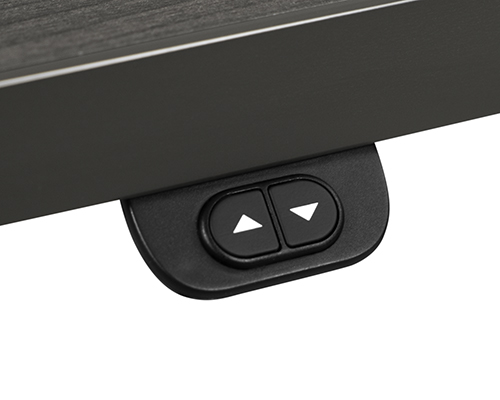

Standard Button
Standard Button-(included)

The standard button allows for easy adjustments with a push of the up and down button. The standard button does not have a programmable option.


Programmable Digital Button

Programmable Digital Button

The Programmable button allows for the desk to be raised or lowered to 4 different positions. It comes with the option to turn on the one-touch functionality. Simply press and release one of the four presets, the desk will move to the preset height automatically.



Certifications & Ratings


  • ASNI/BIMFA Certified American National Standard For Office Furnishings - Test Includes: Top Loading, Load Ease, Extendible Element Cycle, Out Stop, Rebound, Racking, Leg Strength, Horizontal and Vertical Adjustment, Stability, Unit Drop. Learn more at ANSI/BIFMA. See test results here
  • UL Rated - The entire NewHeights Elegante desk is UL rated, not just individual components like many of our competitors desks. UL is a global independent safety science company offering expertise across five key strategic businesses: Product Safety, Environment, Life & Health, University and Verification Services. UL's breadth, established objectivity and proven history mean we are a symbol of trust and enable us to help provide peace of mind to all. Learn more at UL: www.ul.com
  • It is important to note that most budget adjustable height desks do not have the most recent ANSI/BIFMA certification and/or UL rating. These value type products would not stand up to the rigorous testing required to pass certification.



Trust Comes with Experience


RightAngle™, the manufacturer of the NewHeights™ XT, has developed products for more than twenty-five years utilizing the highest standards of design, engineering and production practices. The company was formed in the 1980s and is known for being one of the first companies to focus on the creation of ergonomic office products. RightAngle™ is always looking for practical and creative ways to use ergonomics to meet the needs of its customers, which led to the release of the NewHeights™ Series. It’s this ingenuity and longevity in the business that make the quality and durability of the NewHeights™ line unmistakable.

Accessories

NewHeights™ Ergonomic Accessories

Single Basic HS1111 Details

  • We recommend this item
  • 12 3/4" tall post mount system
  • Most vesa compliant monitors up to 32" will fit
  • Weight Capacity up to 33lbs
  • Built-in internal cable management: cables route neatly

Single Premium HS3101 Details

  • Easy to adjust 12" tall spring operated arm mount
  • Most vesa compliant monitors up to 24" will fit
  • Weight Capacity up to 22lbs
  • Built-in internal cable management: cables route neatly

Dual Basic HS1221 Details

  • We recommend this item
  • 12 3/4" tall post mount system
  • Most vesa compliant monitors up to 26" will fit
  • Weight Capacity up to 33lbs
  • Built-in internal cable management: cables route neatly

Dual Premium HS3221 Details

  • Easy to adjust, dual 13 1/2" spring operated
  • Most vesa compliant monitors up to 26" will fit
  • Weight Capacity up to 22lbs
  • Built-in internal cable management: cables route neatly

Basic Keyboard Tray MVS17S Details

  • Single knob adjusts height and tilt
  • 5.5" of height adjustment
  • -15°/+10° tilt adjustment
  • Spring assist for tilt and height adjustment

Premium Keyboard Tray MCFP17 Details

  • We recommend this item
  • No knob or lever needed for height adjustment
  • 6" of height adjustment
  • -20°/+0° tilt adjustment
  • Low profile design maximizes knee space

Basic CPU Holder 200CPU Details

  • Fits CPU's up to 64" perimeter
  • Slides out and swivels
  • Uses strong nylon strap system to secure CPU
  • Supports up to 60 lbs

Premium CPU Holder 300CPU Details

  • We recommend this item
  • Adjusts to fit computers 4"-9.5"W x 11.5"-21"H
  • Slides out and swivels
  • Uses 16 guage steel to secure CPU
  • Supports up to 75 lbs

Wire Management

  • We recommend this item
  • Route cables from desk to floor
  • Easily attaches to the underside of the desk
  • Quickly install or remove the cables inside
  • Keep the cables segregated from each other

Swivel Pencil Drawer

  • Dimensions: 14"W x 8"D x 1"H
  • Swivels and stows underneath desk
  • Includes scotch tape dispenser
  • Perfect for pencisl, pens and paper clips



Compact Pencil Drawer

  • Dimensions: 13"W x 17 3/8"D x 1 3/4"H
  • Slim under desk design
  • Constructed of sturdy black plastic
  • Steel ball bearing slides with lock-in detents

Color Swatches

colors

Laminate Options (click to enlarge)


Black
Cherry
Concrete Groovz
Driftwood
Galaxy White
Grey Matrix
Hardrock Maple
Mahogany
Merapi
Reclamation Maple
Stromboli

Product Reviews

Warranty and Shipping

NewHeights Products Warranty

All desks shipped AFTER 2/18/2020 are warranted to be free of defects due to manufacturing or materials as follows: twelve (12) - support brackets, columns and feet; gears and/or motors, electrical components; 5 years on the desktop.

All desks shipped 10/1/2015 - 2/17/2020
 are warranted to be free of defects due to manufacturing or material as follows: 5 years on gears and/or motors, including control box and switch; 10 years on support brackets, aluminum columns and feet; 5 years on the desktop. K&A Mfg. will replace any defective part after inspection by an authorized agent. Costs incurred due to product relplacement such as installation and labor charges are not covered under this warranty. We do provide free shipping on all warranty replacement parts. Free shipping on parts replaced under warranty do not apply for shipments outside of the continental United States.

For all desks shipped prior to 10/1/15 the previous warranty applies. NewHeights™ products are warranted to be free of defects due to manufacturing or material as follows: 3 years on gears and/or motors, including control box and switch; 5 years on support brackets, aluminum columns and feet. K&A Mfg. will replace any defective part after inspection by an authorized agent. Costs incurred due to product relplacement such as installation, labor charges or transportation are not covered under this warranty.

EXTENDED WARRANTY
NewHeights XT products shipped after 7/30/20
 with the EXTENDED WARRANTY desks are warranted to be free of defects due to manufacturing or material as follows: 20 years on gears and/or motors, including control box and switch; 20 years on support brackets, columns, and feet; 5 years on the desktop. We will replace any defective part after inspection by an authorized agent. Costs incurred due to product replacement such as installation, labor charges or transportation are not covered under this warranty.

Shipping Information

This item includes free shipping in the contiguous United States. (more details here)
