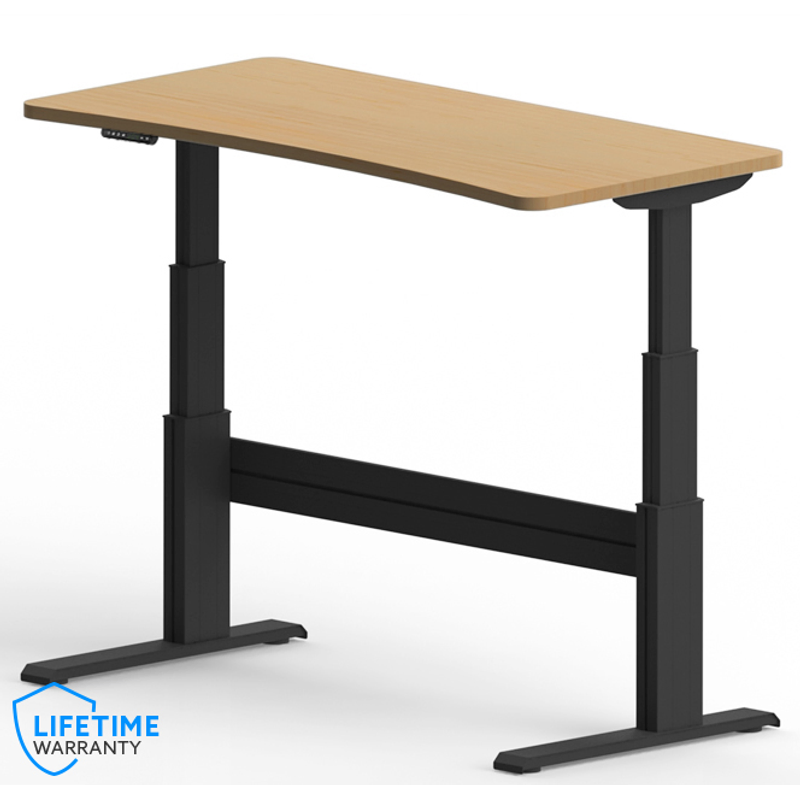

NewHeights Elegante XT Bow Front Sit Stand Desk w/ Voice Control

Roll Over to Magnify / Click for Expanded View
Starting At $1,674.99 + Free Shipping!

Manufacturer: RA Products

This product typically ships within 10 business days more details

E-mail to a friend | Add To Wish List




NewHeights Elegante

Introducing the updated Elegante XT electric adjustable desk by NewHeights™, our most complete sit stand desk to date. Every NewHeights™ desk is commercial grade and perfect for use in the home or professional office setting. The NewHeights™ Elegante line offers 325 lbs lifting capacity per two leg configurations. Each leg comes complete with a separate motor; controlling the strong gear and spindle drive system inside. This dual motor configuration is what allows the NewHeights™ desk to make swift adjustments even when loaded to max capacity.

For added leg room the Elegante is available without a cross support bar, for additional stability just add the slim and sleek cross support to the base. When this cross support is added, the Elegante is rock solid at standing height and will not sway side to side or back and forth. Many of the budget models that we have tested display a considerable amount of rocking when raised above 40". When you pair the Elegante's new under worksurface frame with our proven cross support system, you get a ridiculously stable desk. There really is no other desk available like this one today! The NewHeights™ desk is a proven leader in the field and one of the few adjustable height desks built in the United States of America. If you have any additional questions related to our products please feel free to contact customer service at 866-733-0698 ext 1.

Additional Resources From The Learning Center
What Is The Best Adjustable Standing Desk?
How Many Calories Will I Burn Sitting vs Standing?
Top 6 Reasons Why Adjustable Standing Desks Wobble
12 Reasons To Avoid Cheap Standing Desks Under $400
What Is The Best Wire Management For Standing Desks?
Top 5 Problems With DIY Standing Desks


  • Push button control for easy height adjustment (programmable available)
  • Best in class height adjustment range of 24" to 51"
  • Strong everyday lifting capacity of 325lbs
  • Quick and quiet adjustment speed of 1.6"/second (even when fully loaded @ 325lbs)
  • Durable 1 1/8" thermally fused laminate worksurface w/ matching edge banding
  • Smooth transitions with soft start and stop technology
  • Includes power strip with 4 grounded plugs and two usb plugs
  • 23" leg space - from front edge of desktop to cross bar (available without cross bar)
  • Base made from recycled aluminum and extruded for added strength
  • Plugs into standard 110 outlet (control box and motor are UL approved)
  • Electronics are produced by Laing Innotech GmbH + Co. KG, based in Germany
  • Passed the most recent and rigorous ANSI/BIFMA X5.5-2014 certification (see details)
  • NEW Lifetime Warranty on Entire Desk
  • Manufactured in the USA



Steel Frames

Stability Starts With a Solid Foundation

Thanks to extruded aluminum the NewHeights™ XT’s legs are extraordinarily strong and unbendable. Through the extrusion process, raw aluminum is heated and then pushed through a tool called a “die”. The result is a perfectly shaped piece of aluminum that becomes stronger as it hardens.  Because the legs are molded rather than solid they are more rigid which prevents both swaying and tipping that other desks with solid legs may experience. Extruded products don’t bend and they also don’t rust which means they are good for the environment since you will not need to replace them due to these factors.

European Engineered Motor & Spindle Drives

The double stroke synchronized telescopic spindle gear system is more efficient than chain drives and provides a smoother and quieter lifting motion. These state-of-the-art systems are designed and manufactured by Ketterer Gears in Germany, in an area known for high-precision mechanical systems. Ketterer got its start more than 180 years ago, when Benedikt Ketterer founded a clock making factory in 1832. Since then the company has always been on the forefront of new ideas, from the first electricity connection in the area, to the factory’s own private rail siding for its material supplies. For the past 25 years, Ketterer has been making height adjustment mechanisms for office and workshop systems, so you can rest assured the XT’s spindle gear system is a leader in dependability and durability.



Precision Spindle Gears and Motor

4EVERedge Technology

Seamless Edges with 4EVERedge Technology

Say good bye to peeling, sharp edges on your desktop. The 4EVERedge™ process produces virtually invisible joints using state of-the-art hot air technology rather than old fashioned glue. The seamless edge banding which results, looks neater, is resistant to dirt, heat and moisture and even offers a higher UV resistance to fading. Plus you won’t have to worry about replacing your whole desk just because your edges are coming undone because they won’t!  But just to give you even more peace of mind, these edges come with a lifetime warranty. You won’t have to worry about getting your shirt caught in the edge of your desk again with 4EVERedge! ™

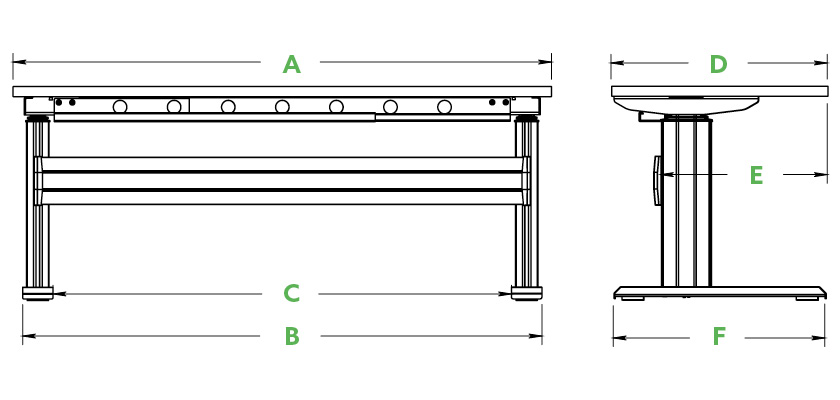

NewHeights Elegante XT Dimensions Model

NewHeights Elegante XT Dimensions Key


Cross Support Option:

Cross Support

Aluminum Cross Support for Rock Solid Stability

Also made of extruded aluminum, the XT’s cross support ensures this standing desk is the most stable on the market. By adding the cross support option your desk will have absolutely zero movement, even at heights of 51 inches! This ultimate steadiness is due to a frame underneath the top, connecting both legs, and the cross support spanning across the bottom half of the frame.™

Button Options:

Standard Button
Standard Button-(included)

The standard button allows for easy adjustments with a push of the up and down button. The standard button does not have a programmable option.

Programmable Digital Button

Programmable Digital Button

The Programmable button allows for the desk to be raised or lowered to 4 different positions. It comes with the option to turn on the one-touch functionality. Simply press and release one of the four presets, the desk will move to the preset height automatically.

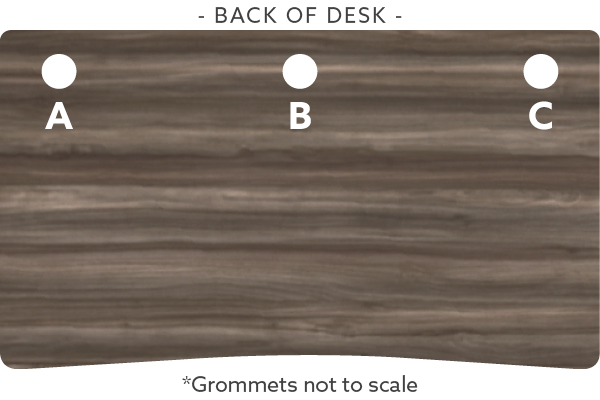

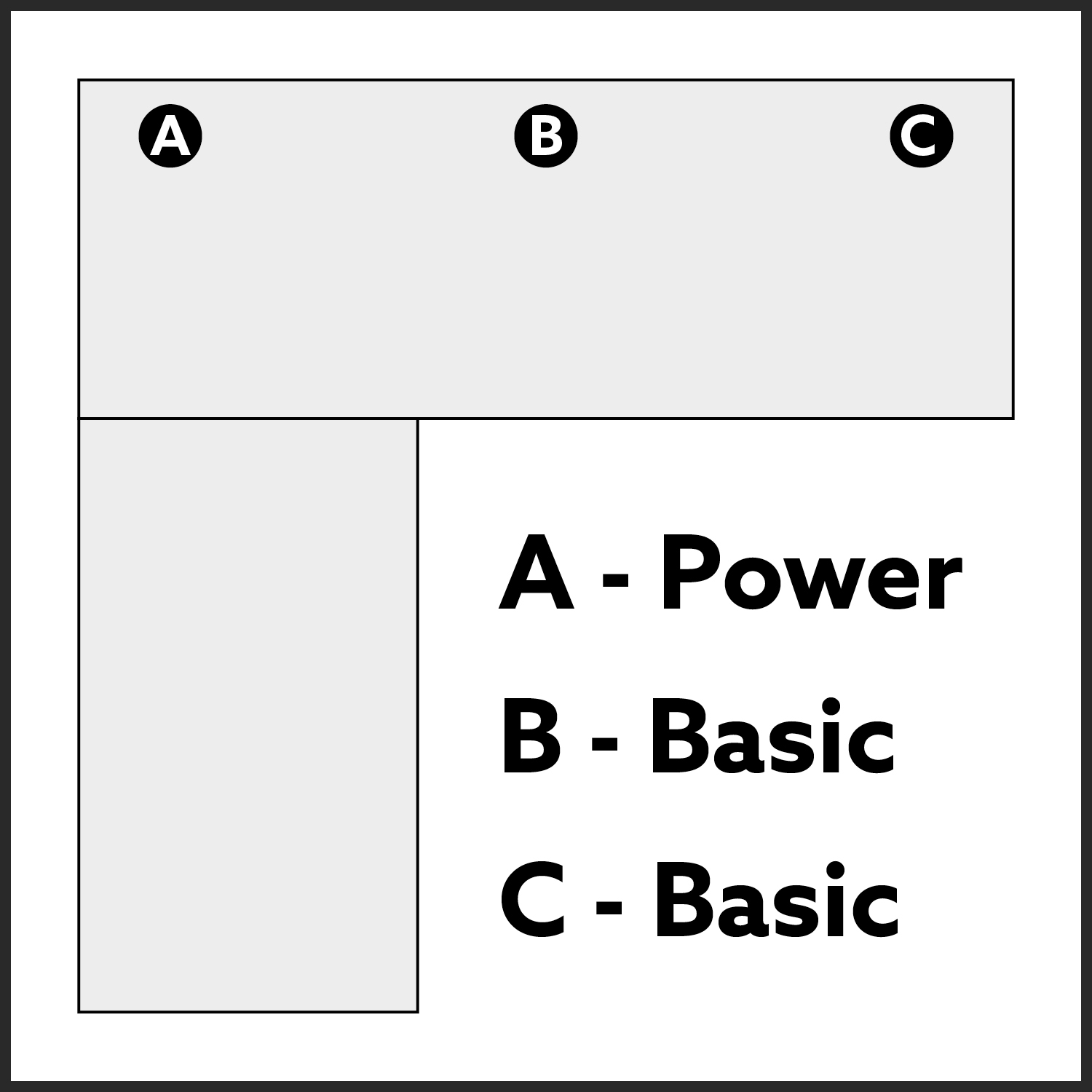

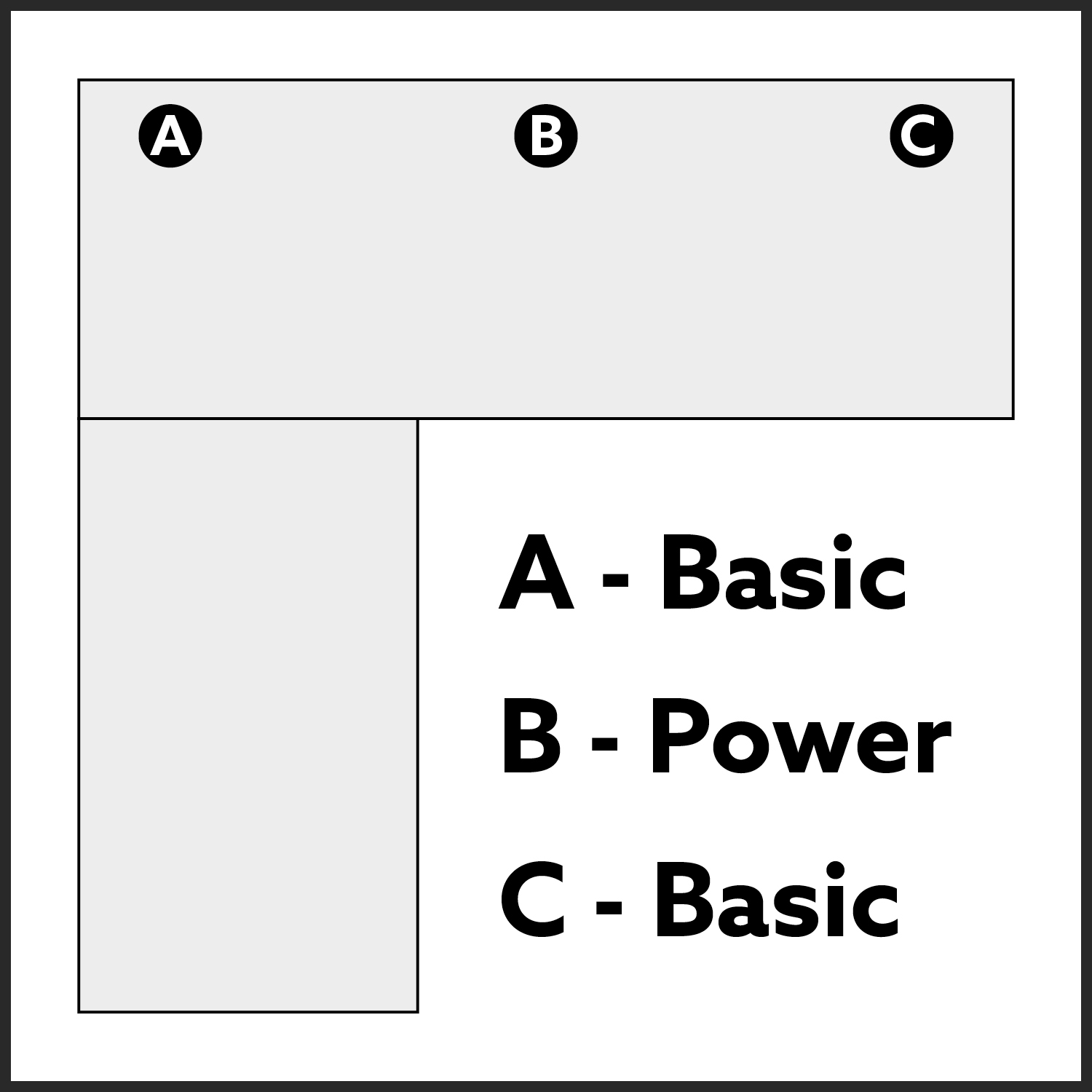

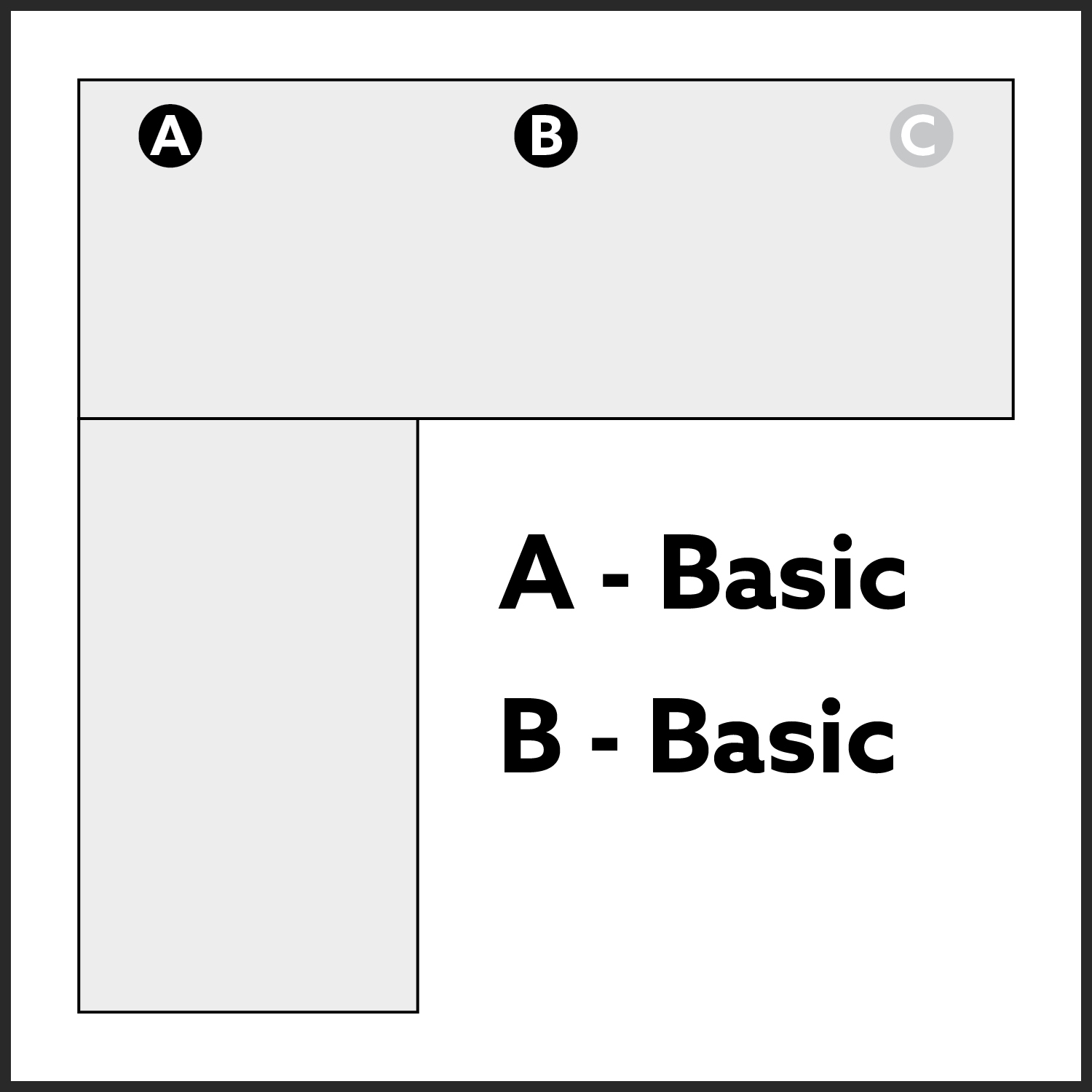

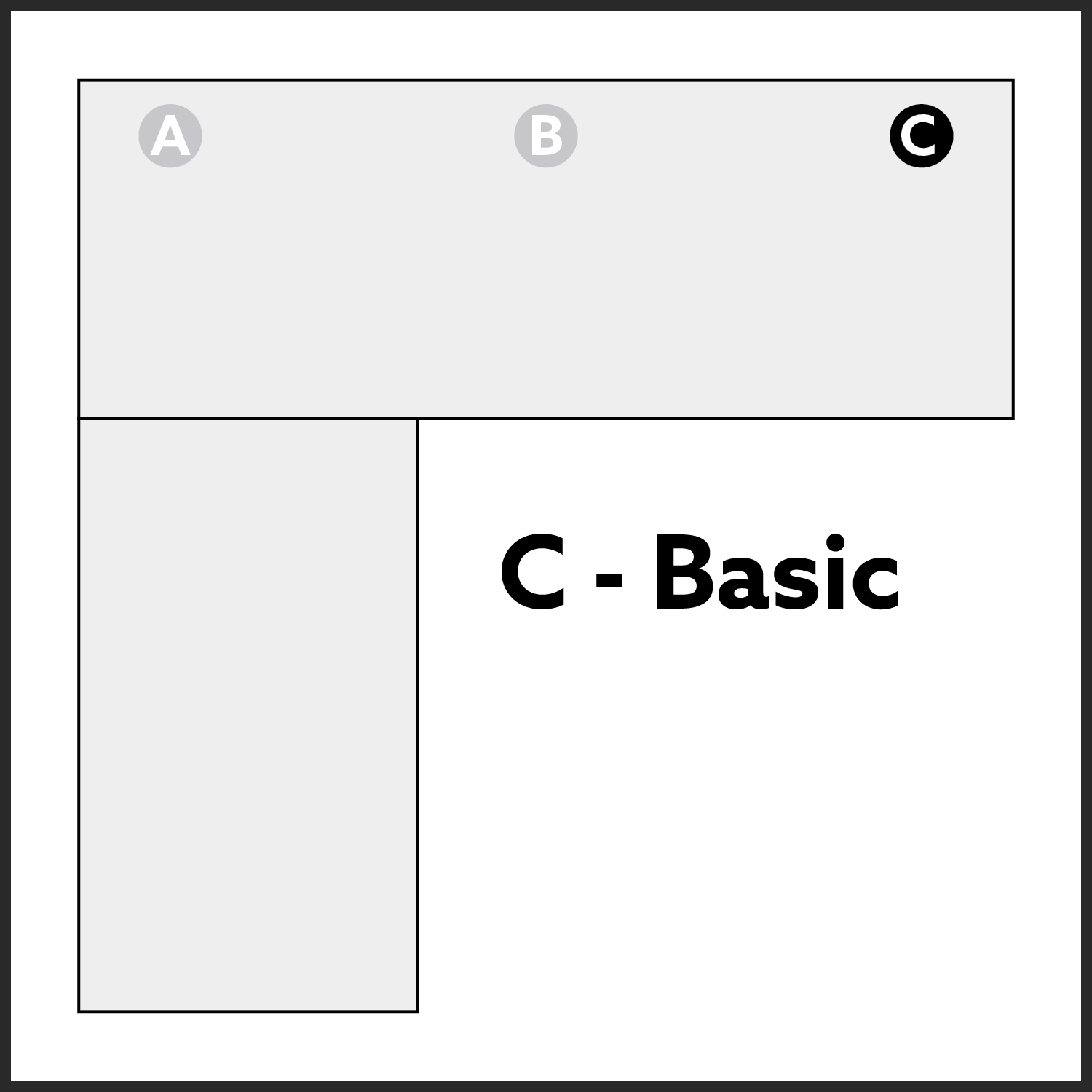

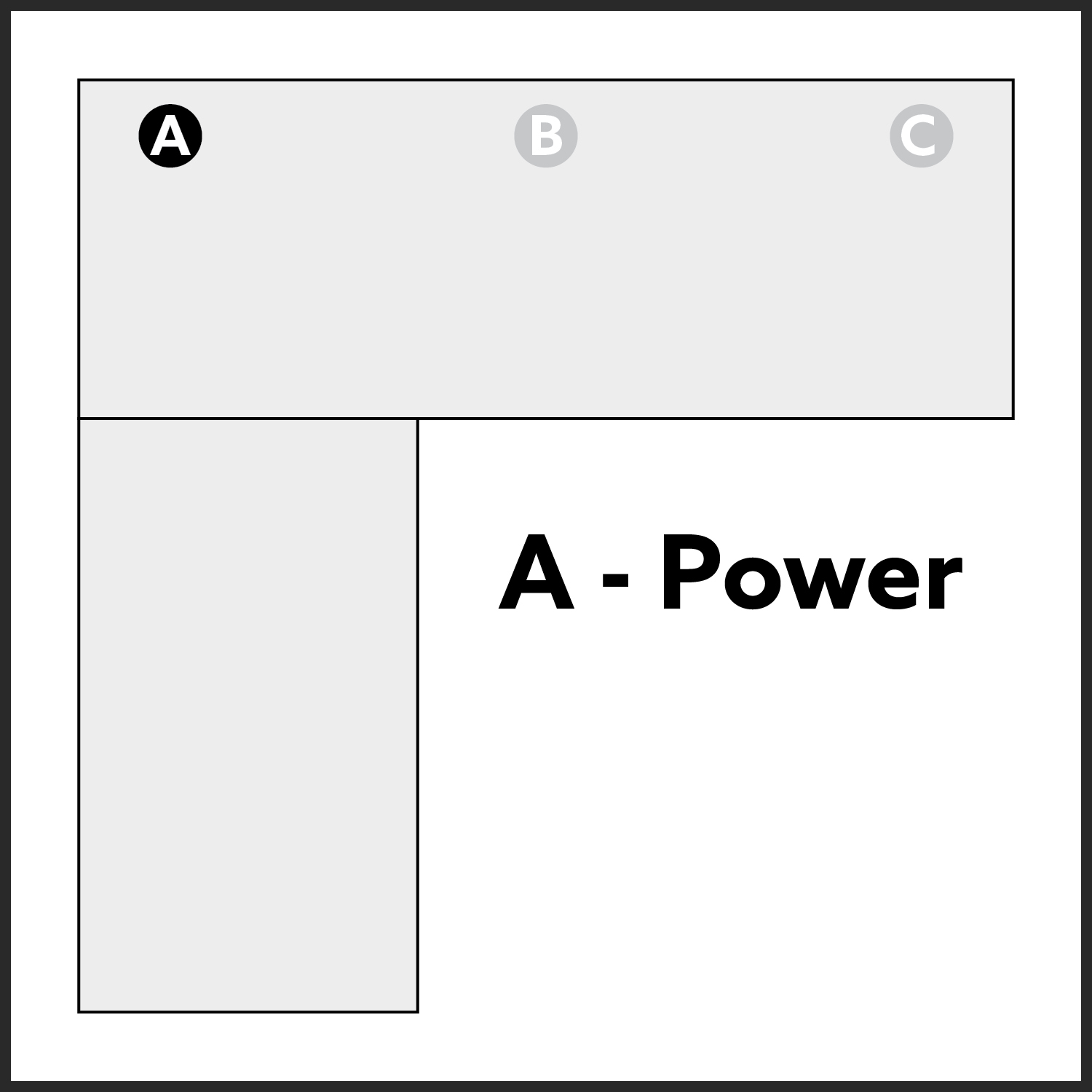

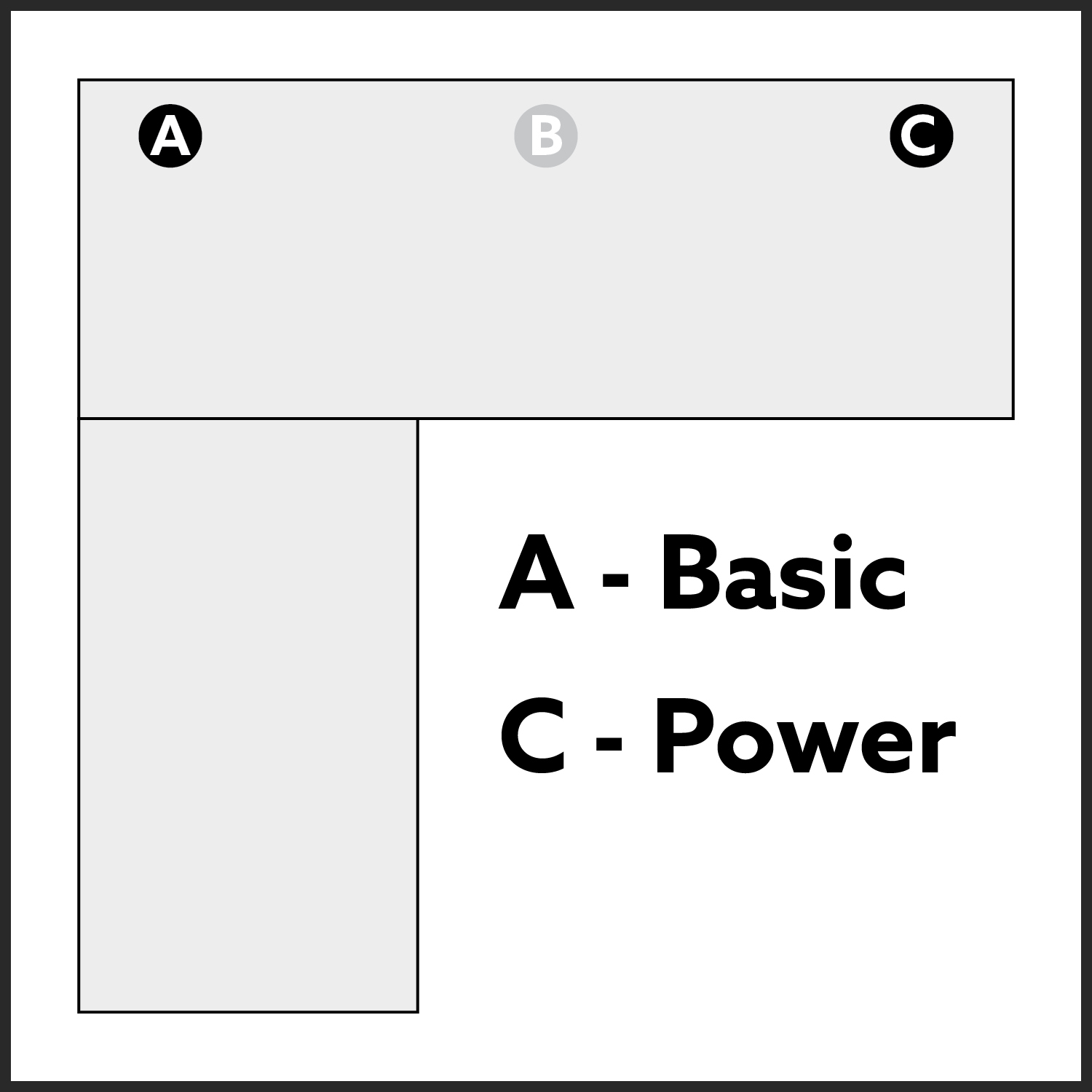

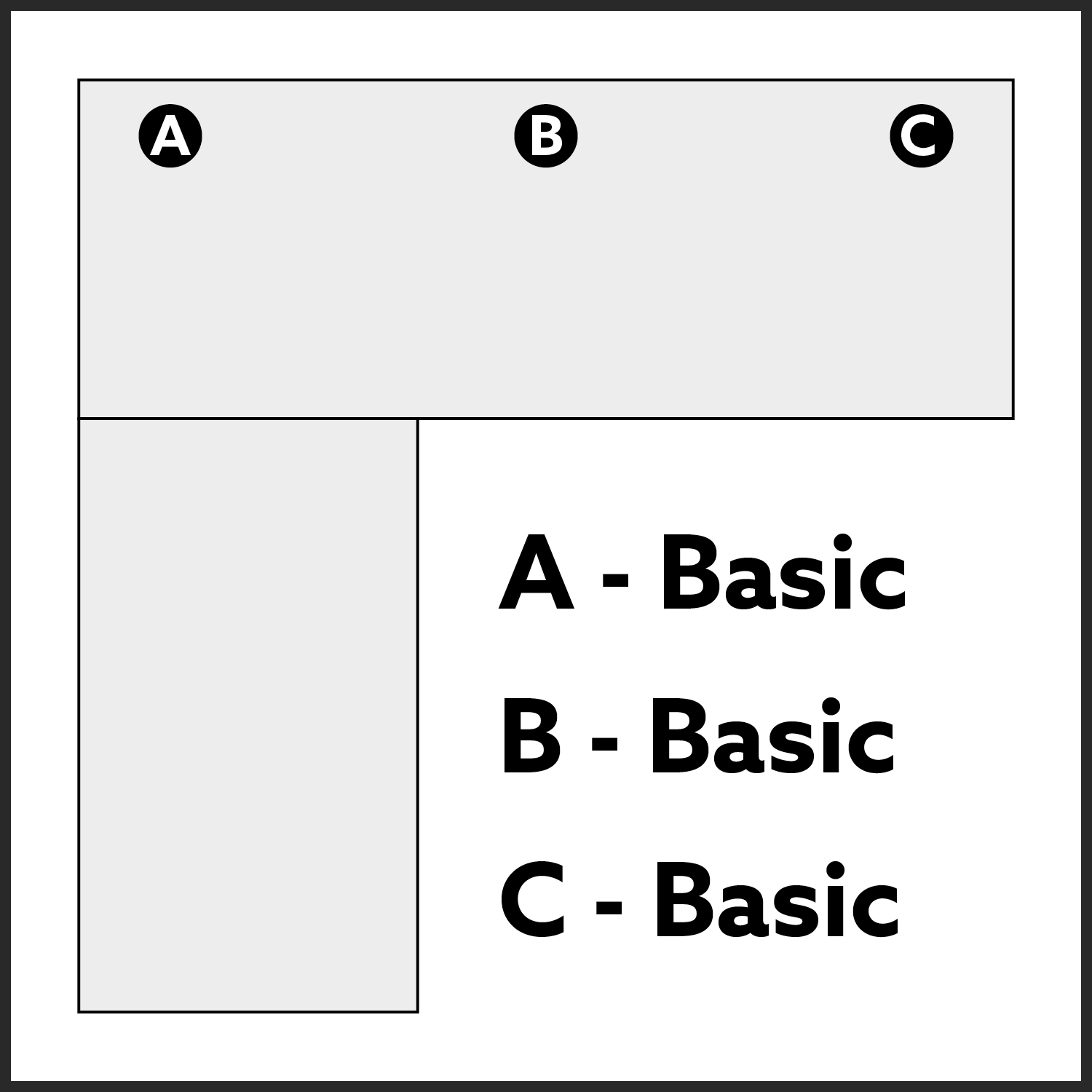

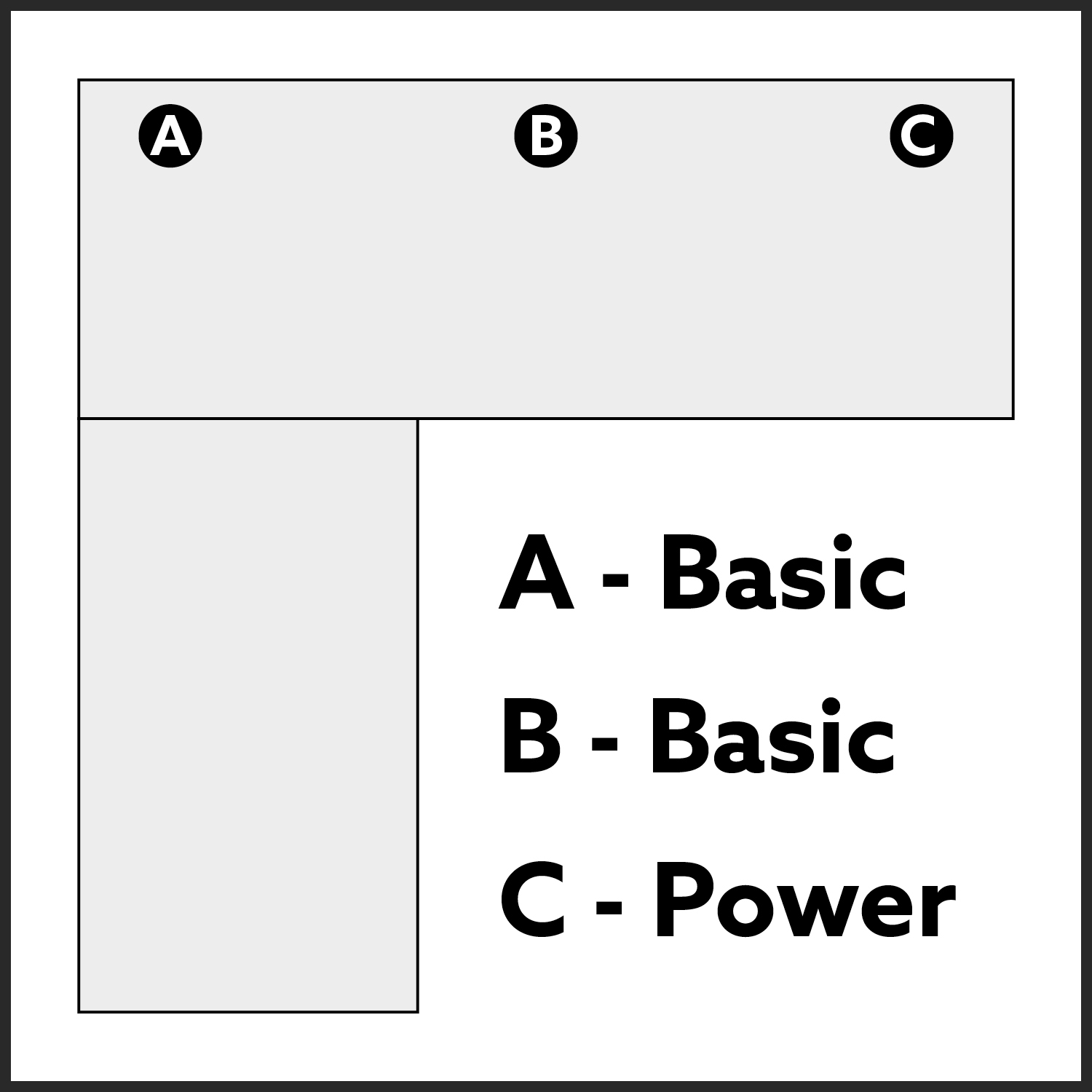

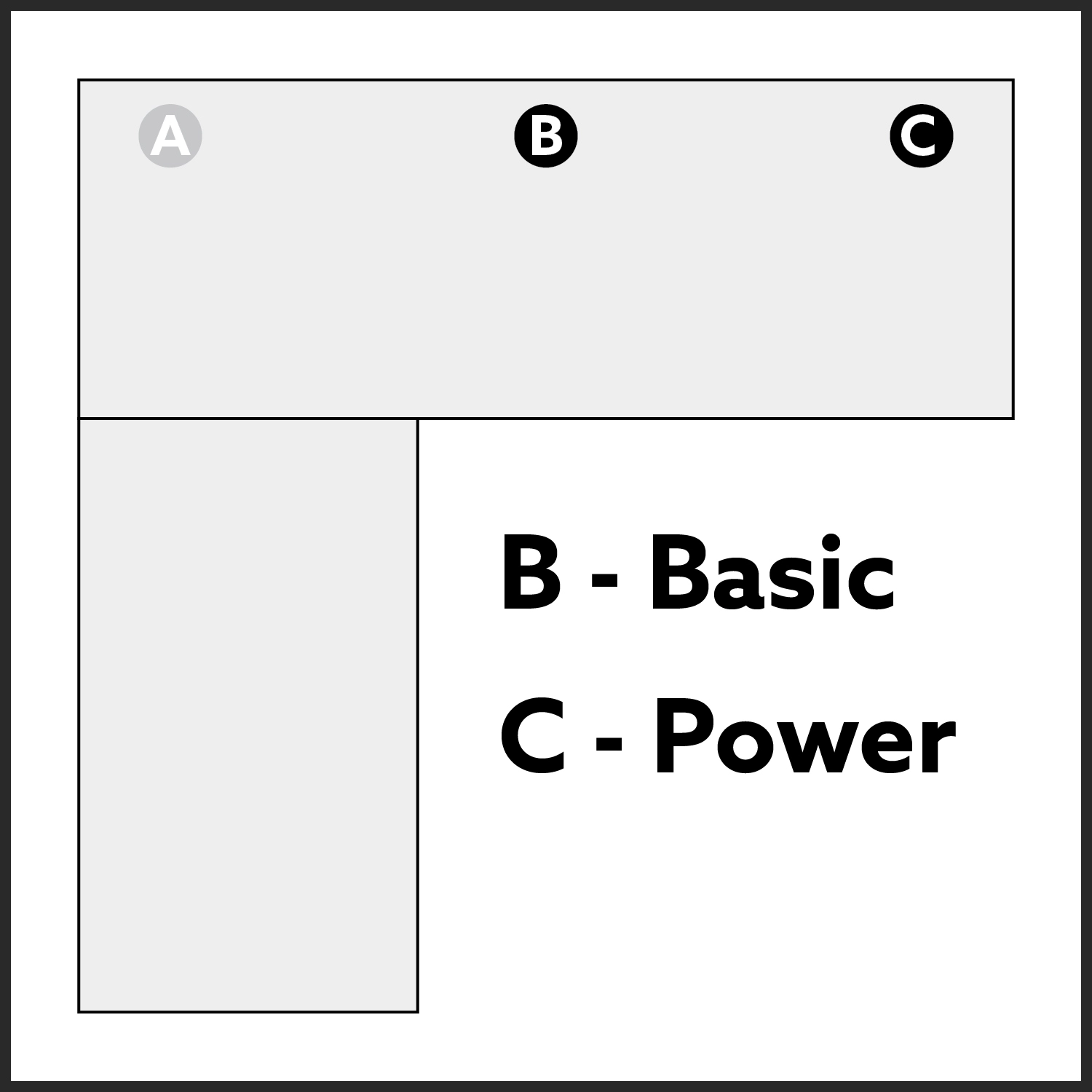

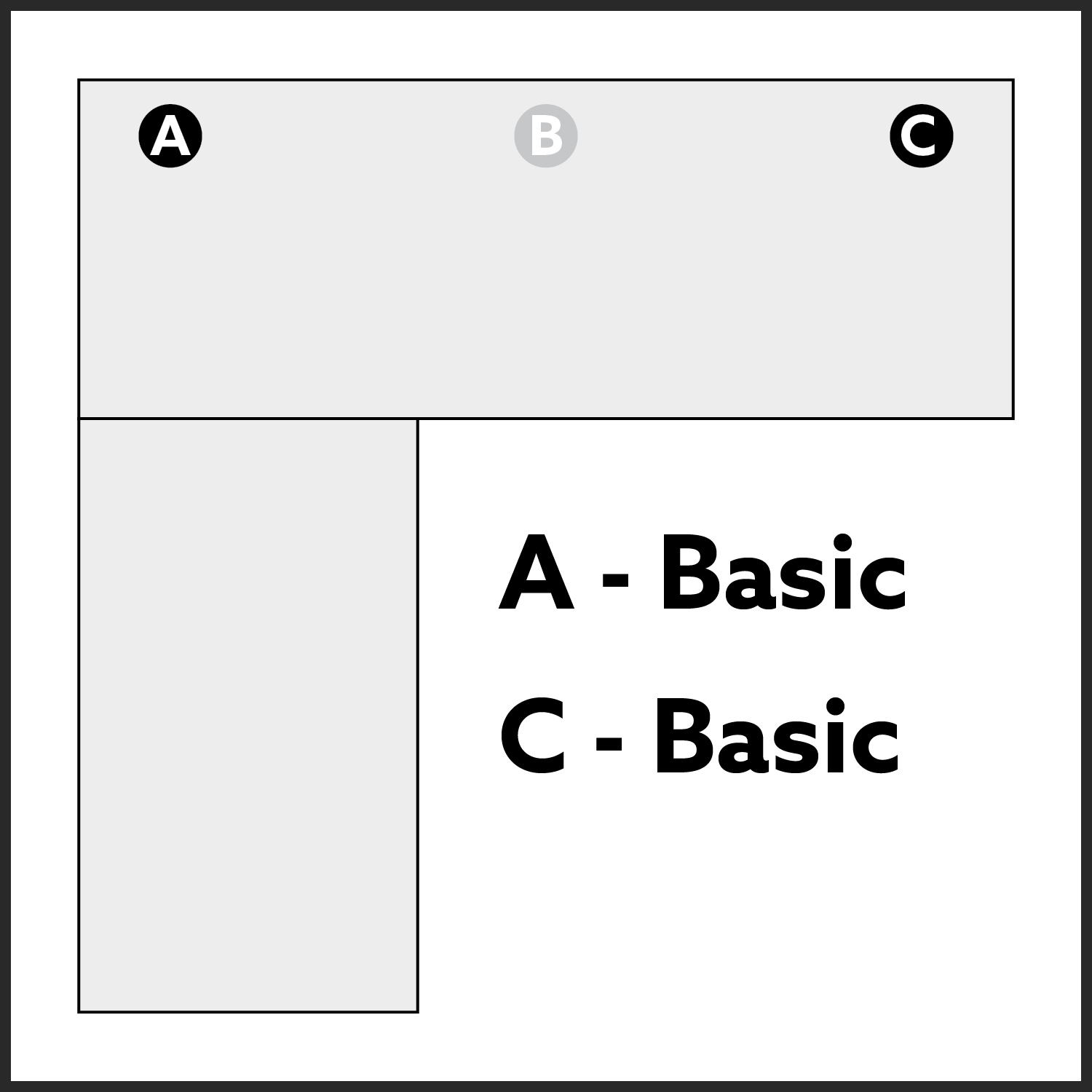

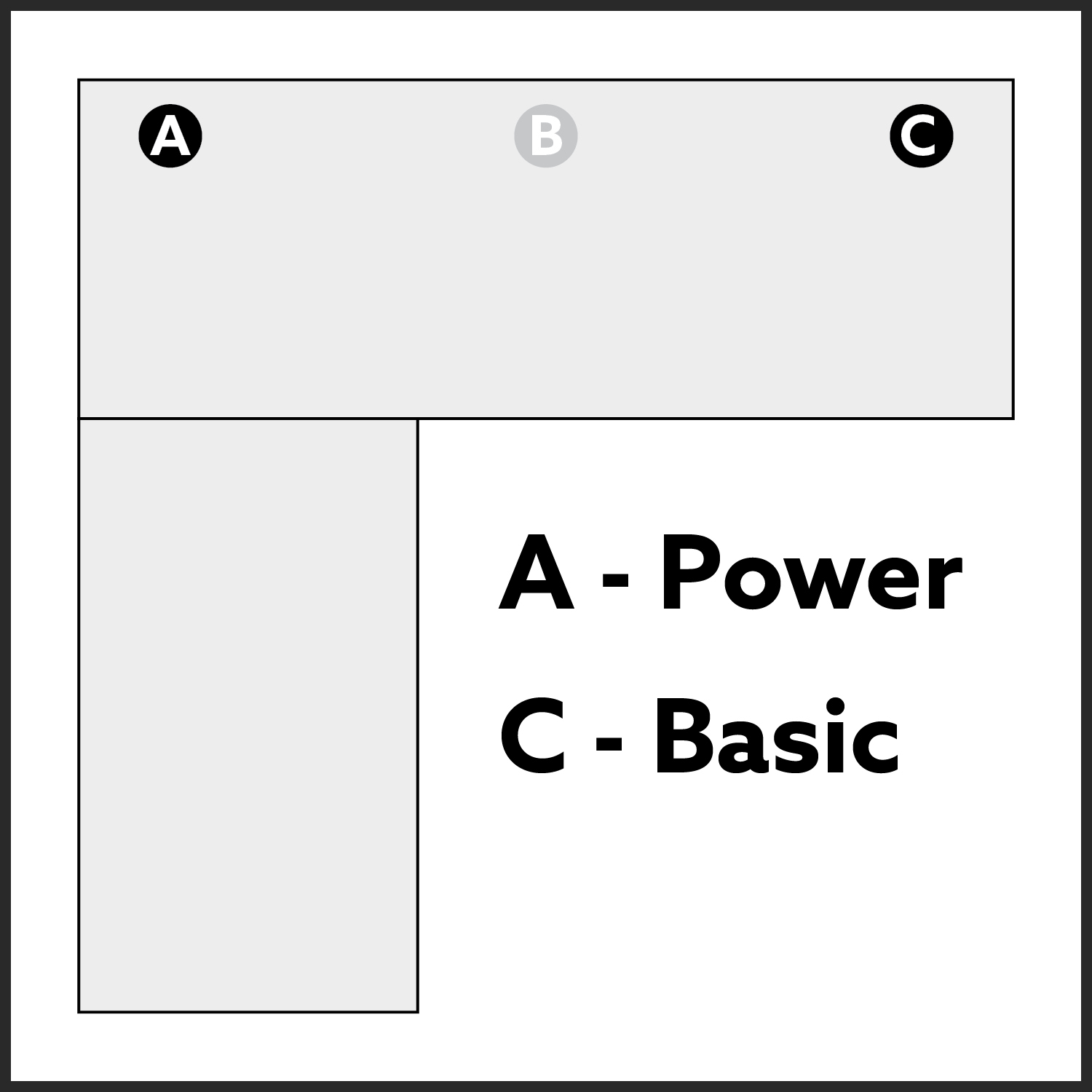

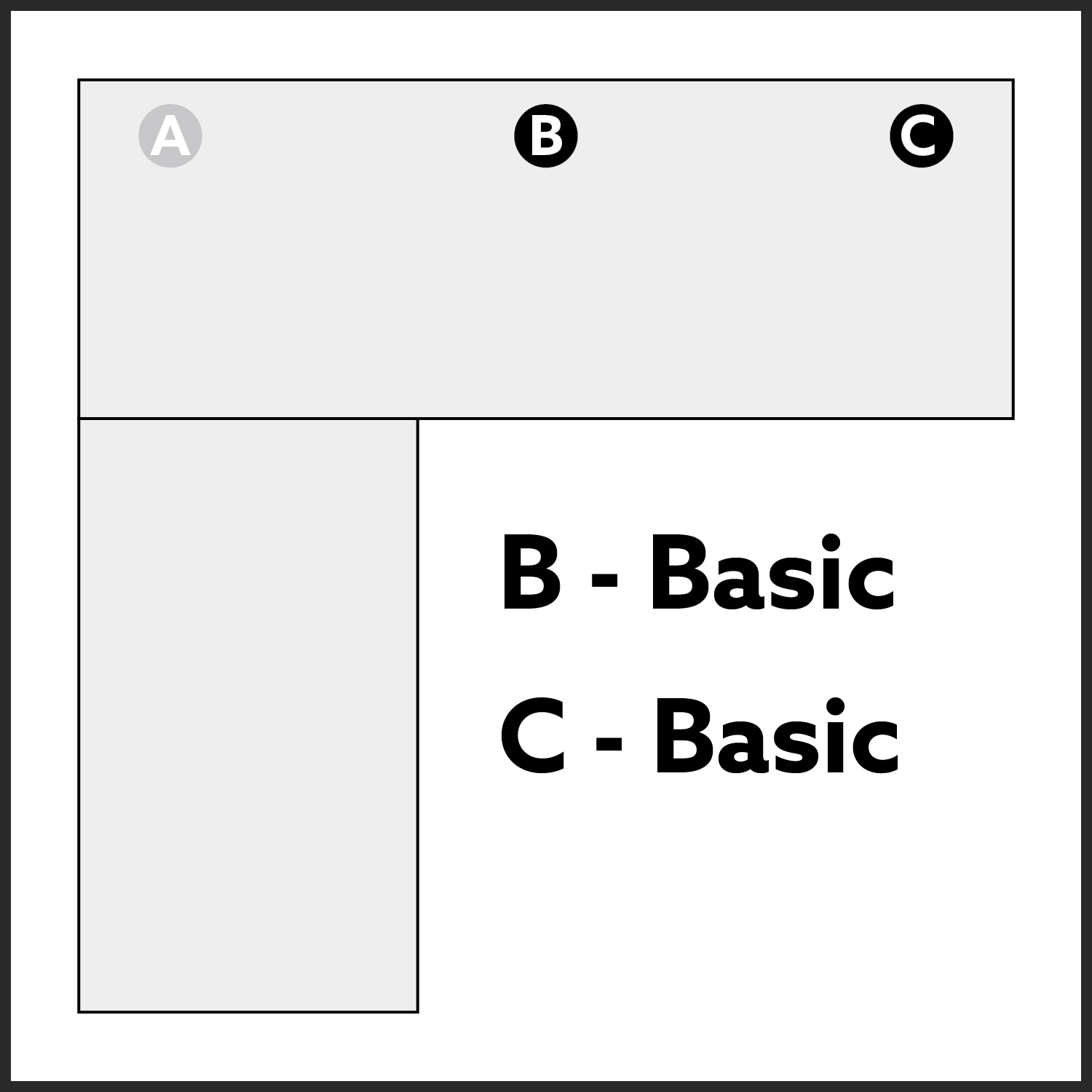

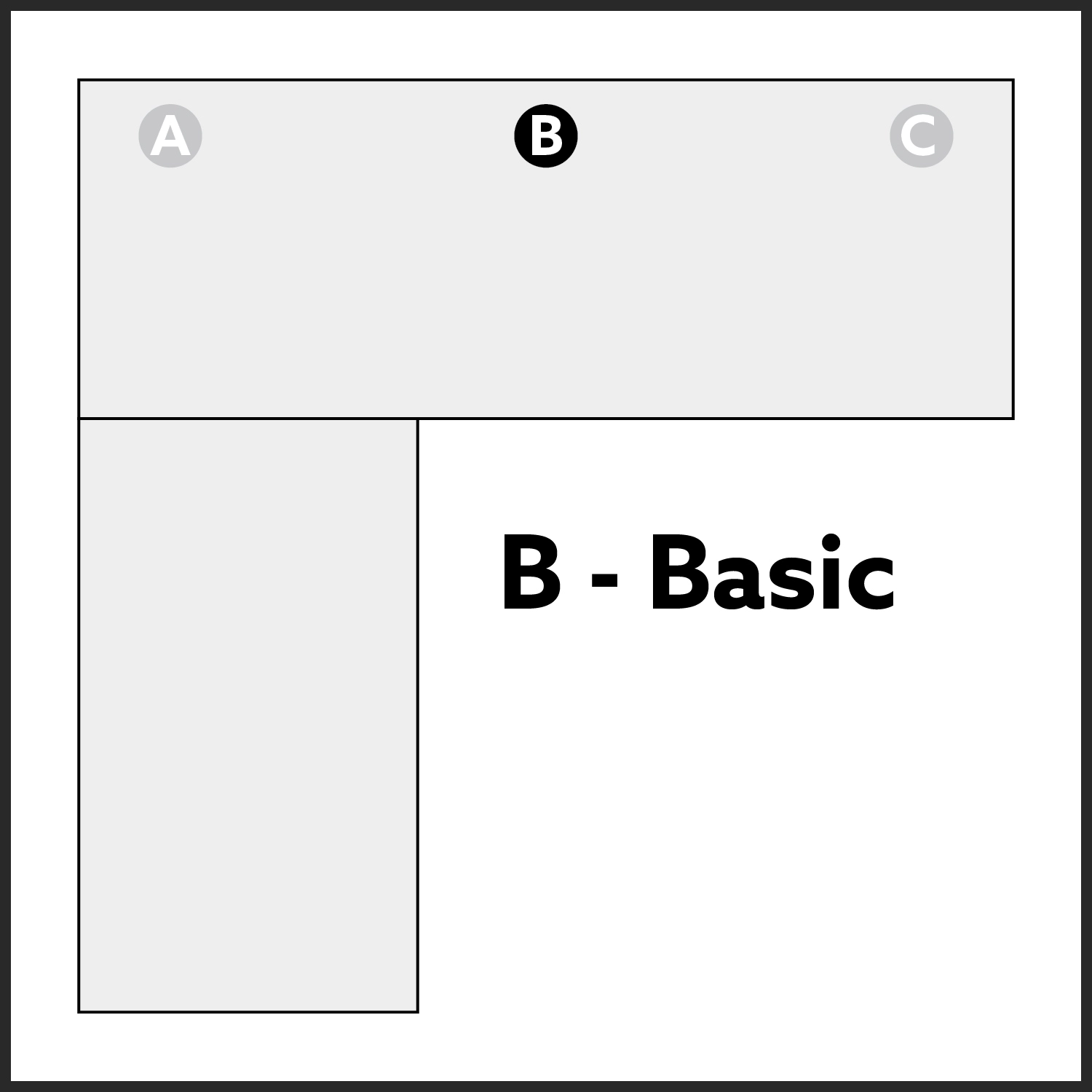

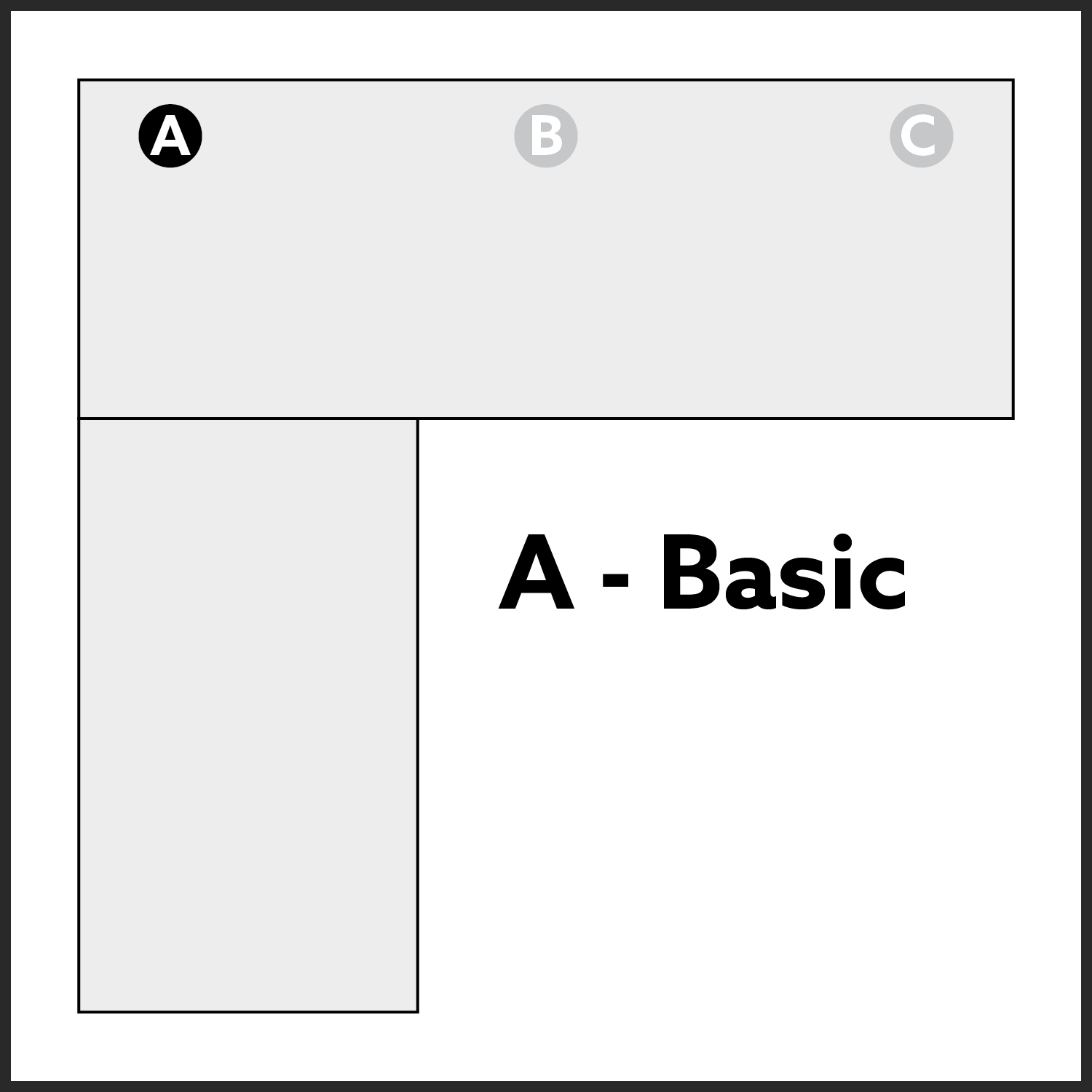

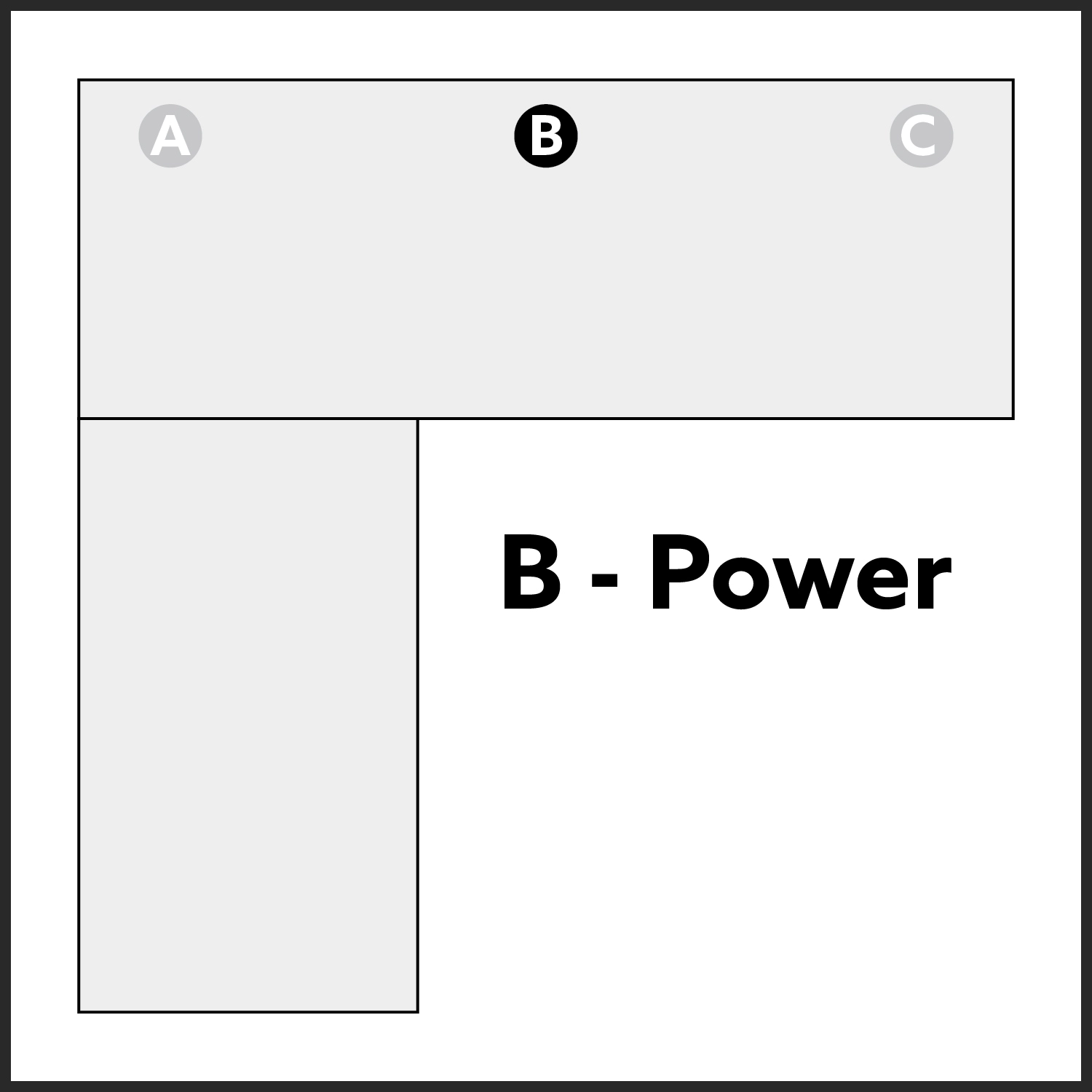

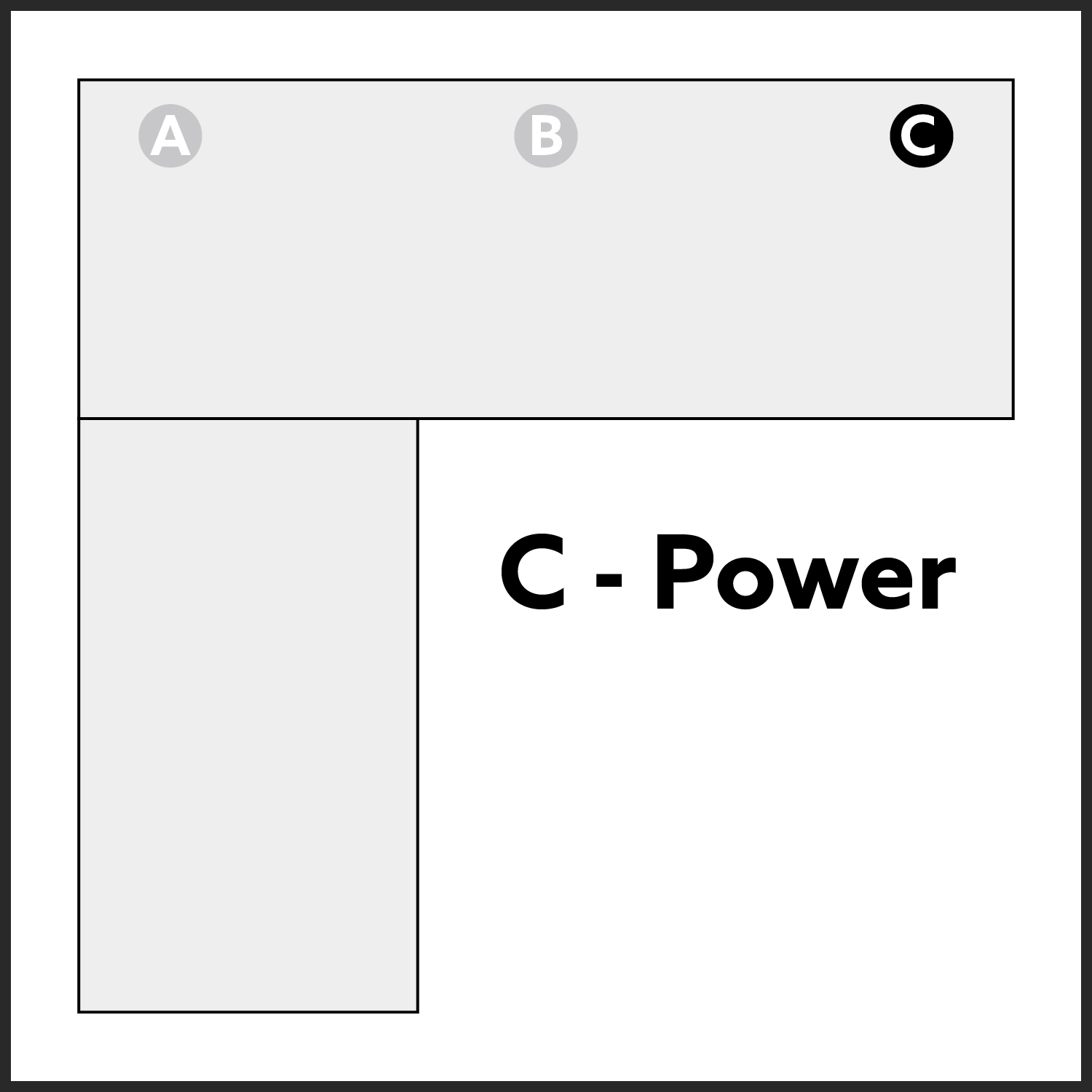

Grommet Options:

Grommet model

Grommet key

Grommet key

Grommet basic

Grommet Basic Key

Grommet Example

Grommet Key

Grommet Info

Grommet Example


Certifications & Ratings

  • ASNI/BIMFA Certified American National Standard For Office Furnishings - Test Includes: Top Loading, Load Ease, Extendible Element Cycle, Out Stop, Rebound, Racking, Leg Strength, Horizontal and Vertical Adjustment, Stability, Unit Drop. Learn more at ANSI/BIFMA. See test results here
  • UL Rated - The entire NewHeights Elegante desk is UL rated, not just individual components like many of our competitors desks. UL is a global independent safety science company offering expertise across five key strategic businesses: Product Safety, Environment, Life & Health, University and Verification Services. UL's breadth, established objectivity and proven history mean we are a symbol of trust and enable us to help provide peace of mind to all. Learn more at UL:
  • It is important to note that most budget adjustable height desks do not have the most recent ANSI/BIFMA certification and/or UL rating. These value type products would not stand up to the rigorous testing required to pass certification.

Trust Comes with Experience

RightAngle™, the manufacturer of the NewHeights™ XT, has developed products for more than twenty-five years utilizing the highest standards of design, engineering and production practices. The company was formed in the 1980s and is known for being one of the first companies to focus on the creation of ergonomic office products. RightAngle™ is always looking for practical and creative ways to use ergonomics to meet the needs of its customers, which led to the release of the NewHeights™ Series. It’s this ingenuity and longevity in the business that make the quality and durability of the NewHeights™ line unmistakable.



NewHeights Showcase Video

NewHeights Assembly Videos


NewHeights™ Ergonomic Accessories

Single Basic Monitor Arm

Single Basic: HS1111 Details

  • We recommend this item
  • 12 3/4" tall post mount system
  • Most vesa compliant monitors up to 32" will fit
  • Weight Capacity up to 22lbs
  • Built-in internal cable management: cables route neatly

Single Premium Monitor Arm

Single Premium: HS3101 Details

  • Easy to adjust 12" tall spring operated arm mount
  • Most vesa compliant monitors up to 24" will fit
  • Weight Capacity up to 22lbs
  • Built-in internal cable management: cables route neatly

Dual Basic Monitor Arm

Dual Basic: HS1221 Details

  • We recommend this item
  • 12 3/4" tall post mount system
  • Most vesa compliant monitors up to 26" will fit
  • Weight Capacity up to 22lbs per monitor
  • Built-in internal cable management: cables route neatly

Dual Premium Monitor Arm

Dual Premium: HS3221 Details

  • Easy to adjust, dual 13 1/2" spring operated
  • Most vesa compliant monitors up to 26" will fit
  • Weight Capacity up to 22lbs per monitor
  • Built-in internal cable management: cables route neatly

Basic Keyboard Tray

Basic Keyboard Tray: MVS17S Details

  • Single knob adjusts height and tilt
  • 5.5" of height adjustment
  • -15°/+10° tilt adjustment
  • Spring assist for tilt and height adjustment

Premium Keyboard Tray

Premium Keyboard Tray: MCFP17 Details

  • We recommend this item
  • No knob or lever needed for height adjustment
  • 6" of height adjustment
  • -20°/+0° tilt adjustment
  • Low profile design maximizes knee space

Basic CPU Holder

Basic CPU Holder: 200CPU Details

  • Fits CPU's up to 64" perimeter
  • Slides out and swivels
  • Uses strong nylon strap system to secure CPU
  • Supports up to 60 lbs

Premium CPU Holder

Premium CPU Holder: 300CPU Details

  • We recommend this item
  • Adjusts to fit computers 4"-9.5"W x 11.5"-21"H
  • Slides out and swivels
  • Uses 16 guage steel to secure CPU
  • Supports up to 75 lbs

Hanging Steel Box/File Cabinet

Joey 2.0 Hanging Pedestal

  • Dimensions: 12 1/4"W x 14""D x 19 7/8"H
  • Available in Black & Silver to match frame
  • Upgrade to Laminate Front
  • Lockable pencil and file drawer
  • Top cubby shelf to store papers, cell phone, etc.
  • Charge devices inside drawers using cord
    access at the back
  • Large file drawer for standard hanging
    files or personal items
  • Full extension drawer slides

Swivel Pencil Drawer

Swivel Pencil Drawer: 300PTB Details

  • Fits 24" deep desks only
  • Dimensions: 14"W x 8"D x 1"H
  • Swivels and stows underneath desk
  • Includes scotch tape dispenser
  • Perfect for pencisl, pens and paper clips

Under Desk Sliding Pencil Drawer

Full Size Pencil Drawer:
100PDB Details

  • Fits 30" deep desks only
  • Steel ball bearing slides
  • Five compartments
  • Constructed of sturdy black plastic
  • Drawer Dimesions: 21 1/4"W x 16 1/8"D x 1 3/4"H

    Compact Pencil Drawer

    Compact Pencil Drawer

    • Fits 30" deep desks only
    • Dimensions: 13"W x 17 3/8"D x 1 3/4"H
    • Slim under desk design
    • Constructed of sturdy black plastic
    • Steel ball bearing slides with lock-in detents

    Wire Management Box

    Wire Management Box

    • Multiple channels
    • Each Opening is 3.130"
    • Organize and hide excess wires
    • Attached to desk top

    Wire Management

    Wire Management

    • We recommend using w/ power strip
    • Route cables from desk to floor
    • Easily attaches to the underside of the desk
    • Quickly install or remove the cables inside
    • Keep the cables segregated from each other

    Power Strip

    Power Strip-(included): PSSM-6-2 Details

    • We recommend using w/ wire management
    • Flanges create fast and easy installation
    • Includes 6 grounded power plugs
    • UL rated

    Standard Button

    Standard Button-(included)

    • Easy adjustments with push of up & down button
    • Does not have a programmable option

    Programmable Digital Button

    Programmable Digital Button

    • Raise or lower to 4 different positions
    • Option to turn on the one-touch functionality
    • Press and release one of the four presets
    • Desk will move to the preset height automatically

    Color Swatches


    Laminate Options (click to enlarge)

    Concrete Groovz
    Galaxy White
    Grey Matrix
    Hardrock Maple
    Looks Likatre
    Reclamation Maple

    Product Reviews

    Warranty and Shipping

    NewHeights Products Warranty

    All desks shipped AFTER 4/25/2021 are warranted to be free of defects due to manufacturing or materials as follows: Lifetime Guarantee on support brackets, columns and feet; Lifetime Guarantee on gears and/or motors, electrical components, and desktop. (See More Warranty Details)

    For all products purchased before 4/25/21, See More Warranty Details.

    Shipping Information

    This item includes free shipping in the contiguous United States. (more details here)


    Collision Avoidance

    Protecting What Is Most Important To You

    Featuring the latest GyroSense technology, the new NewHeights™ Elegante electronics have incorporated a gyro sensor in their control box for better detection of soft collisions. Prior to using this technology NewHeights™ Elegante utilized software driven collision avoidance systems. While these were fairly good at stopping hard collisions, they were not able to effectively detect soft objects. The NewHeights™ Elegante is one of the only standing desks in the mid-range to feature a hardware driven collision avoidance system.

    Program Your Favorite Positions (Optional)

    One-touch functionality now comes standard with all programmable switches. No longer will you have to press and hold your button for the desk to reach a desired height. You can first program one of the four preset heights, then you are able to press and release the programmed button. The desk will move up or down to your selected position.



    Overload Protection

    Load Up Your Desk, We’ve Got You Covered

    NewHeights™ Elegante is one of the few standing desks in its class to offer an overload protection system. With a standard lifting capacity of 325 lbs., you don’t have to worry about accidentally overloading your desk. Once the desk has reached max capacity it will automatically shut down, preventing any damage from occurring. While most competing products are finding new ways to advertise higher weight ratings, we have a solution that will provide years of service and protect your investment.


    Frame Finish Options

    The NewHeights™ Elegante is available in two frame finish options. Black and silver are available in all of our current size options. All frames are powder coated with an extra durable finish that hold up well to years of use.

    Frame Finishes

    Finish Color Options

    Find Your Finish

    You’ve heard the saying “don’t judge a book by its cover,” well that’s exactly true for our laminate work surfaces which are really so much more. First, you’ll do a double-take when you realize they are not real wood…they’re even better. That’s because our wood essence laminate desktops are scratch proof, water resistant, and extremely durable, unlike real wood or powder coated tops which can dent and only with stand minor scratches. Plus the powder-coating process, which sprays colored powder onto heated surfaces, creates a smooth painted look making it nearly impossible for the finished product to resemble real wood. You’ll get that real wood look with our wood essence laminate, pay less for it, and it will last you longer. Choose from: Hardrock Maple, Stromboli, Mahogany, Cherry, Driftwood, Concrete Groovz, Merapi, Black, Looks Likatre, Walnut, Grey Matrix, White and Reclamation Maple.


    Particle Board & Lamination Facility

    Our laminate tops are created by Arauco; one of the most technically advanced manufacturers of particle board in the world. Their newest facility was built in Grayling, MI for its easy access to local forests for their raw material. Arauco has a large focus on sustainability by working locally with FSC certified logging companies. These logging companies are within 70 miles of the Arauco facility, which reduces transportation costs and emissions into the environment. This eco-friendly company only distributes particle board within a 400-mile radius. Arauco commits to making sustainable, quality products in the United States of America.






    Standing Behind Our Products

    We hope you never have any problems with your NewHeights Elegante, but if you do...enjoy peace-of-mind knowing we've got you covered. Our NEW Lifetime Guarantee includes a Lifetime Warranty on the entire desk. This includes the frame, electronics (switch, motor, and control box), and laminate desktops.

    Made in the USA

    All NewHeights™ aluminum frames and desk tops are made in Weston, WI, USA.

    Made in the USA
