Today we’re going to share with you the WobbleMeter results for the Jarvis Desk v2 by Fully. If you’re familiar with the BTOD Learning Center, you’ve likely had a chance to see our first Jarvis WobbleMeter post. Let’s find out how the latest version of Fully’s frame did when the WobbleMeter measured the deflection for both wobble and rocking motions.
Full Disclaimer: We are an office furniture dealer and sell some of the products we review. To learn more about the products we sell, our review process and why you can trust us, please visit: Why we’re different. Who is BTOD.com and The Breakroom Blog?
What is the WobbleMeter?
If you’ve never had the chance to read our WobbleMeter posts, you’re probably wondering what it is? In short, The WobbleMeter was designed to provide an objective method of measuring a standing desks wobble and rocking motions. In order to keep our stability test posts short and to the point, we have created a page specifically for additional information on the WobbleMeter and how it functions. To learn more, please visit our Using the WobbleMeter for Standardized Stability Testing post.
WobbleMeter Score Range Guide
0-20 = Excellent Stability
Almost all of the desks tested at sitting height will score between 0-20. This is our baseline for excellent stability since most standing desks provide excellent stability at their lowest heights. Users in this range will not notice motion.
21-30 = Very Good to Good Stability
Between 20-30 most users will not notice the small amount of motion in this range.
31-40 = Good to Fair Stability
Between 31-40 some users may begin to notice the amount of motion in this range. This is especially true the closer the score is to 40.
41-50 = Fair to Bad Stability
Between 41-50 most users will notice the amount of motion in this range. This is especially true the closer the score is to 50.
51-60+ = Very Bad Stability
51-60+ all users will notice the amount of motion in this range. This is especially true for scores that are above 60.
Jarvis Desk v2 Overview
Height Adjustment Range: 24” – 50” (no top)
Travel Speed: 1.5” Per Second
Noise Level: 56-57 dB (only top) 62 dB (150 lbs load)
Weight Capacity: 350 lbs.
Adjustable Width Base: 24” – 74” W
Adjustable Foot Glides: .25” Adjustment
Jarvis Desk v2 Tested
We used the Jarvis Extended version for this test. In order to keep our results consistent, we are using the 3/4″ laminate surface from Fully. The top is 30” x 48” wide, using Fully’s mounting screws to attach the surface to the frame.
Overall Wobble (Side to Side) Deflection Scores
Wobble Deflection Testing Video
Detailed Wobble Deflection Scores and Test Setups

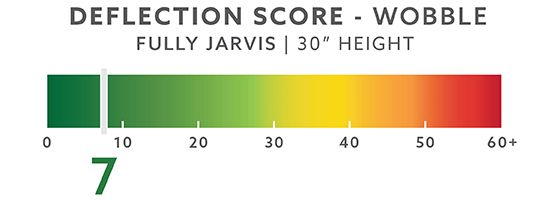

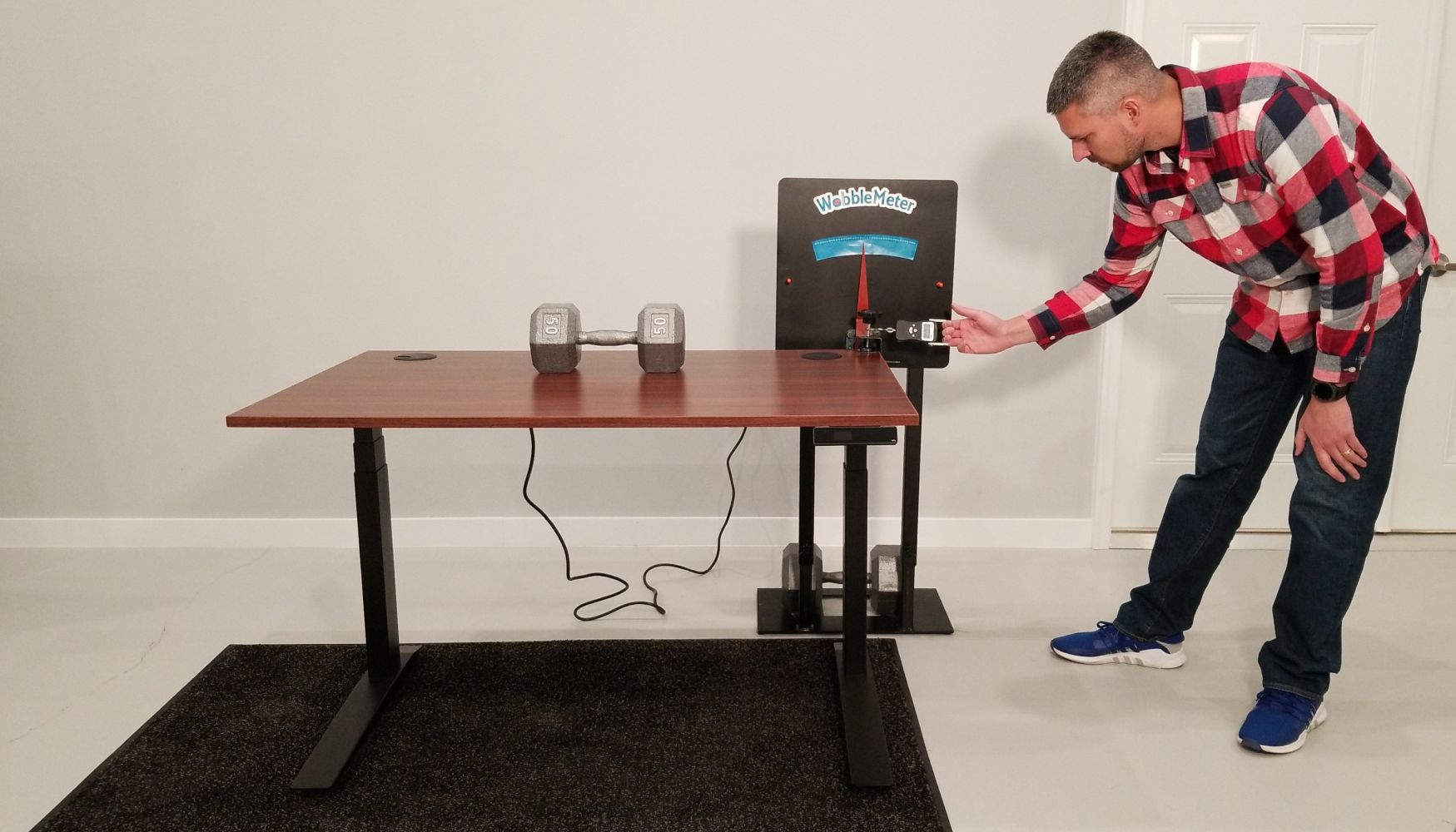

Detailed Wobble Deflection Scores @ 30″ Height
| Pull Force | 5 lbs | 10 lbs | 15 lbs | Total |
| 1 | 2 | 4 | 7 |

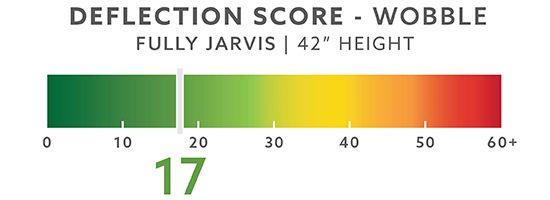

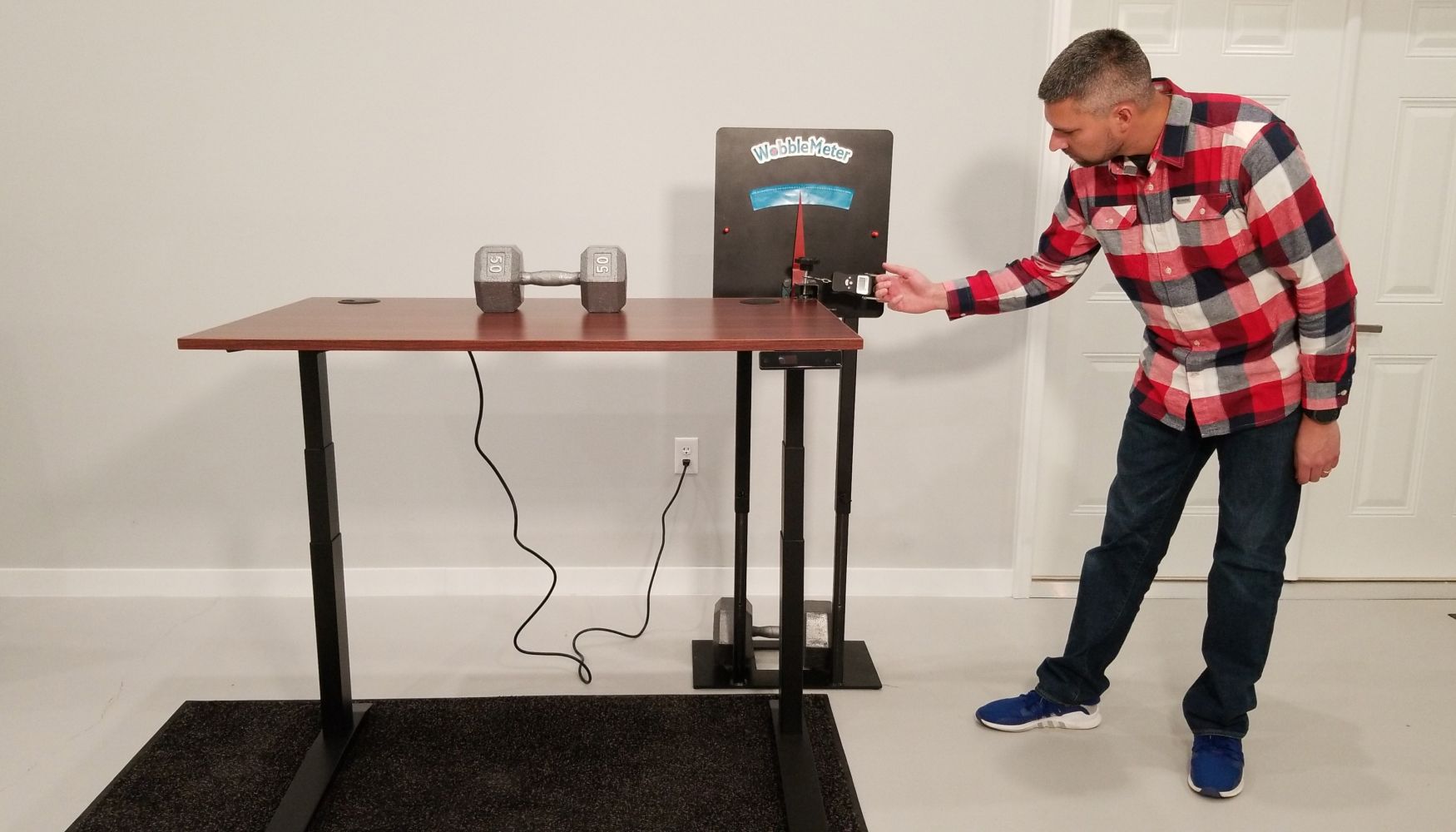

Detailed Wobble Deflection Scores @ 42″ Height
| Pull Force | 5 lbs | 10 lbs | 15 lbs | Total |
| 2 | 6 | 9 | 17 |

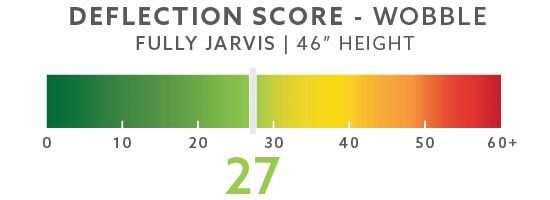

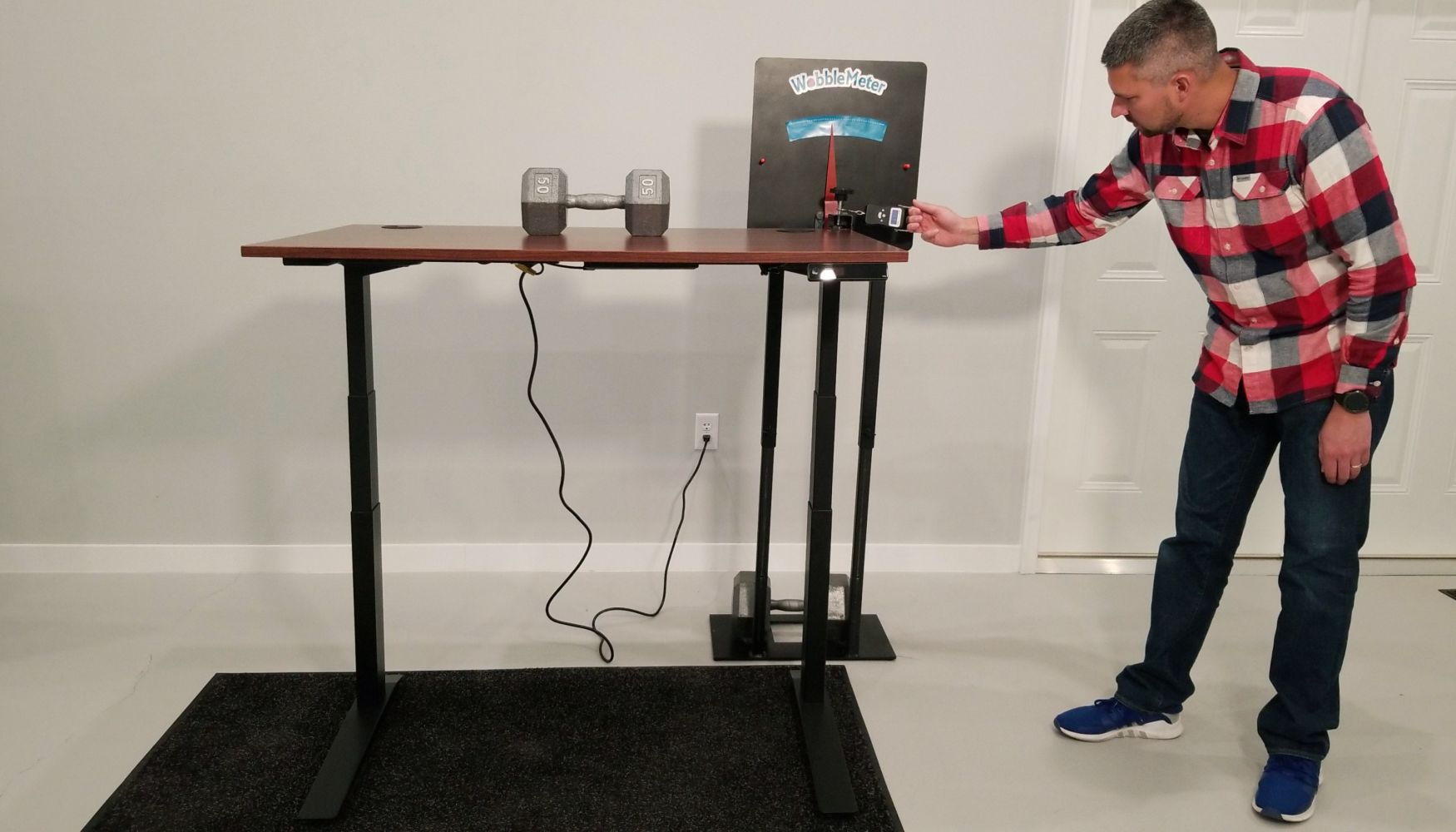

Detailed Rocking Deflection Scores @ 46″ Height
| Pull Force | 5 lbs | 10 lbs | 15 lbs | Total |
| 4 | 9 | 14 | 27 |
Overall Rocking (Front to Back) Deflection Scores
Rocking Deflection Testing Video
Detailed Rocking Deflection Scores and Test Setups

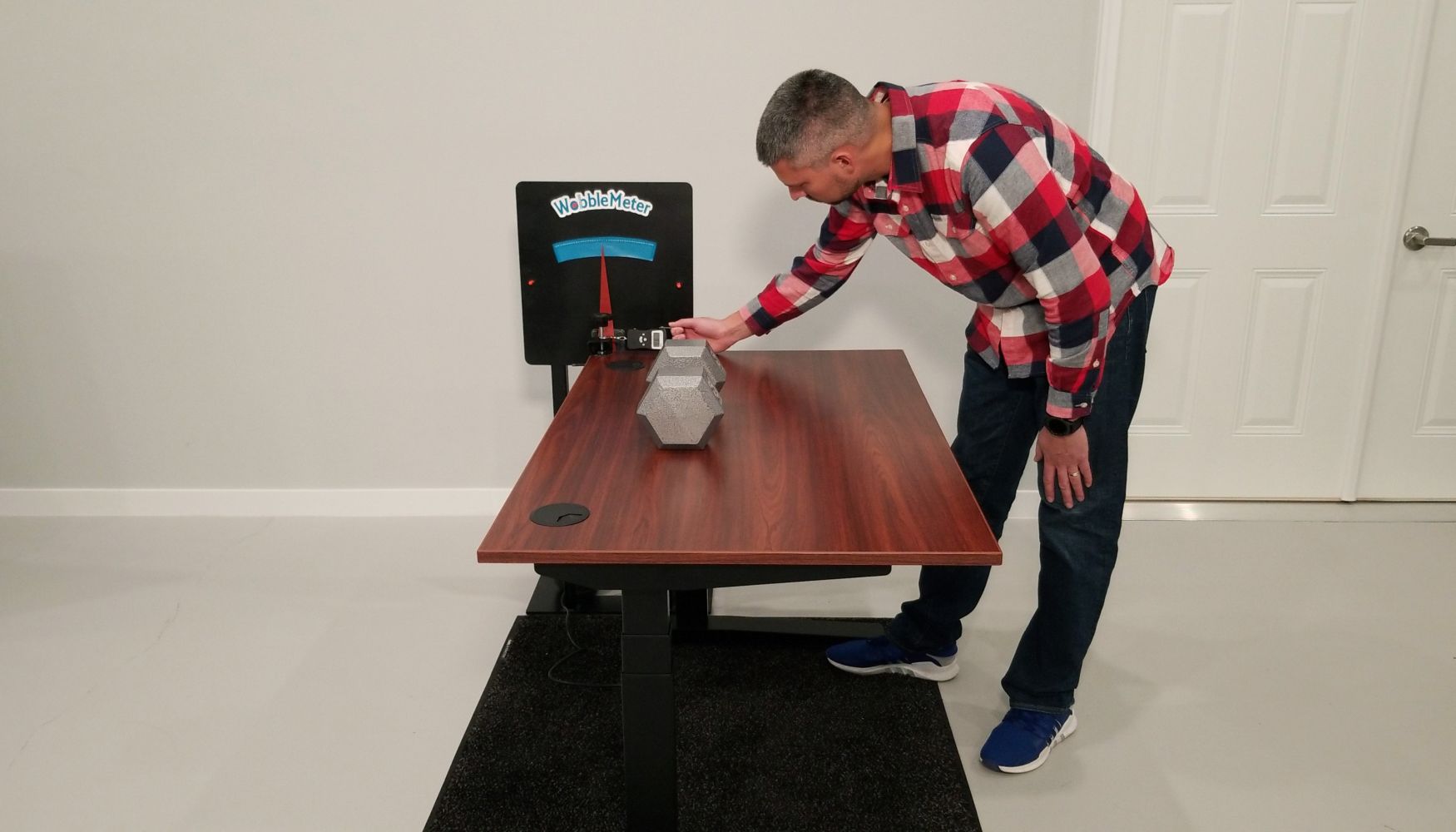

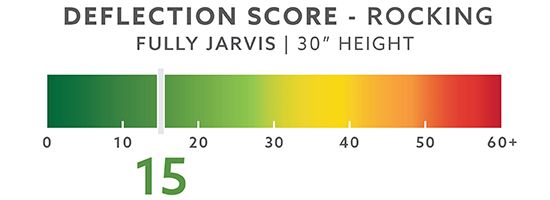

Detailed Rocking Deflection Scores @ 30″ Height
| Pull Force | 5 lbs | 10 lbs | 15 lbs | Total |
| 2 | 5 | 8 | 15 |

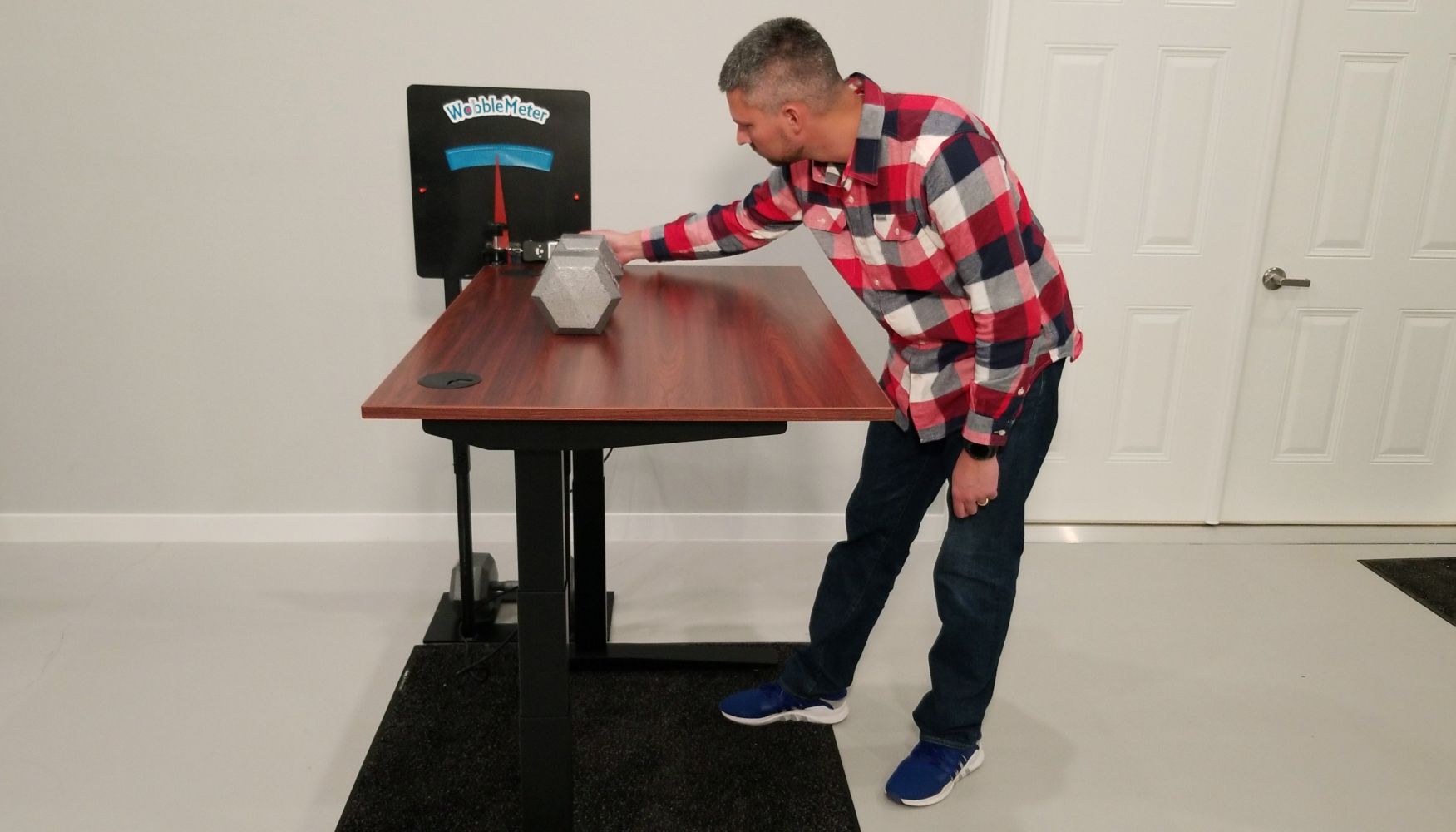

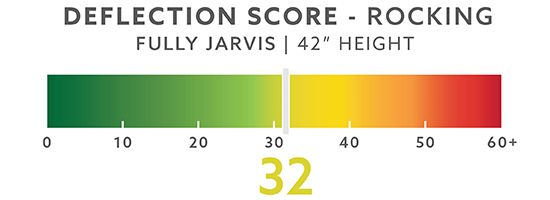

Detailed Rocking Deflection Scores @ 42″ Height
| Pull Force | 5 lbs | 10 lbs | 15 lbs | Total |
| 5 | 11 | 16 | 32 |

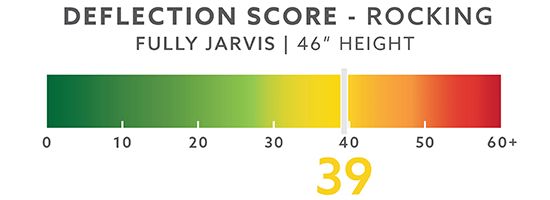

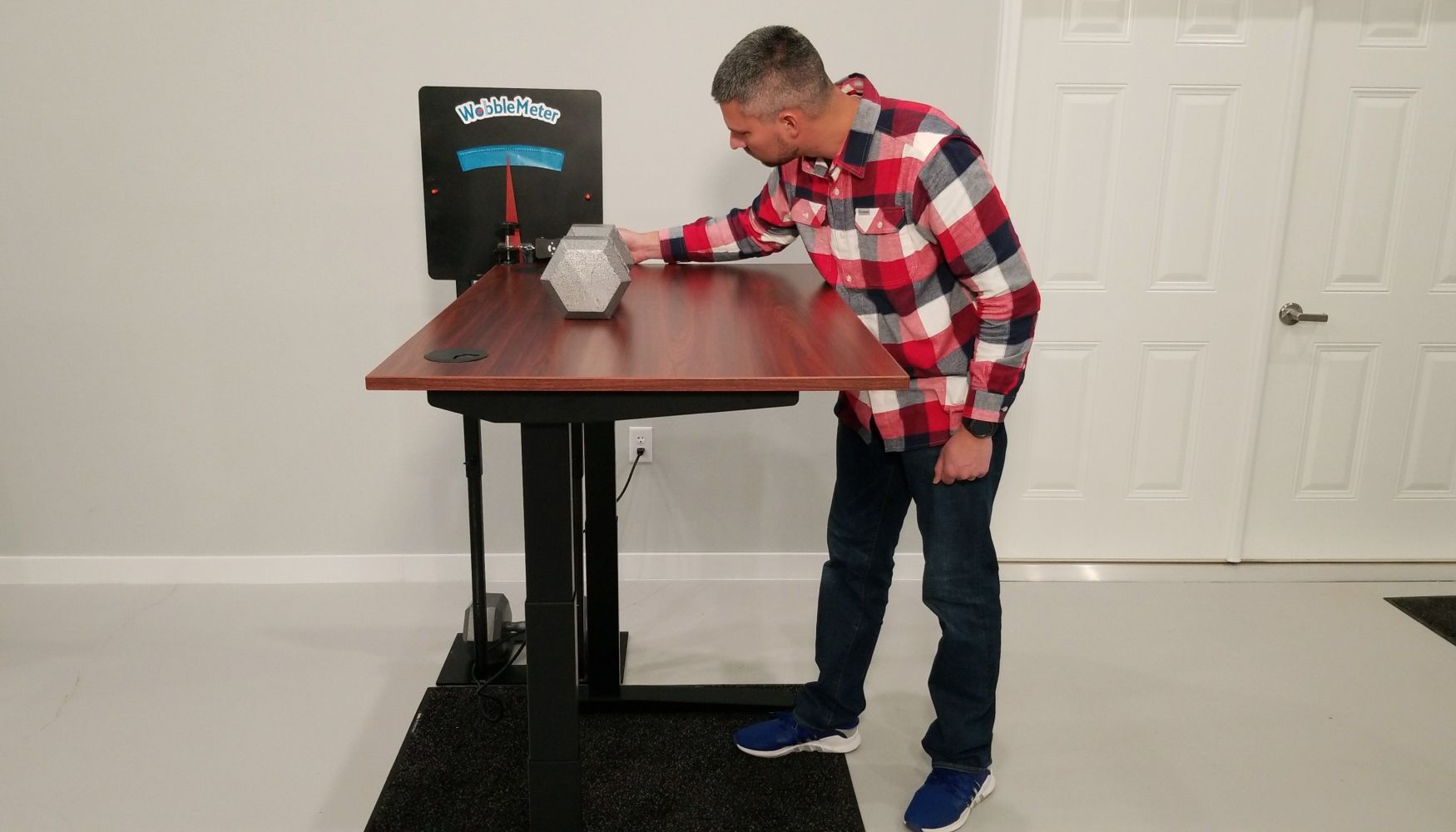

Detailed Rocking Deflection Scores @ 46″ Height
| Pull Force | 5 lbs | 10 lbs | 15 lbs | Total |
| 6 | 13 | 20 | 39 |
